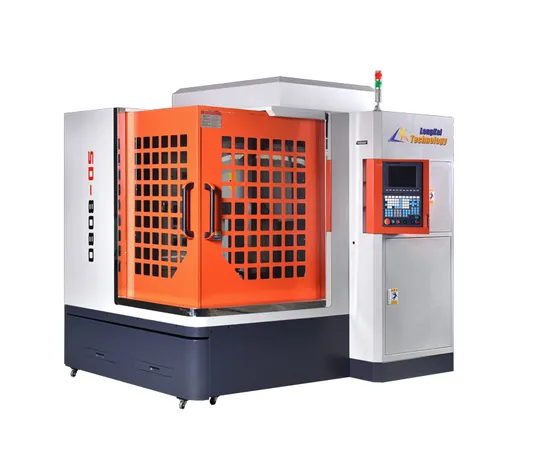

Tat-760 High Precision Metal CNC Engraving and Milling Machine

Product Description

The imported control system and its matching servo driver and motor are used to realize three axis linkage. It is suitable for the parts with proper batch, which are complex, many processes, high precision requirements, need various types of ordinary machine tools, various cutting tools and tooling, and can be processed after many times of clamping and adjustment. Main processing special-shaped parts, plates, sets, plate parts. It is widely used in electronic, mechanical, automotive, aircraft, aerospace, ship, national defense and other fields of products.

CNC engraving and milling machine parameters
Project	Unit	TAT-650	TAT-660	TAT-760	TAT-8080	TAT-1080
X-axis travel	mm	500	600	600	800	800
Y-axis travel	mm	600	600	700	800	1000
Z-axis travel	mm	260	260	350	400	400
Spindle nose to table	mm	50-310	50-310	30-290	70-470	70-470
Three-axis guide width		X/Y:30 Z:25	X/Y:30 Z:25	X/Y/Z:30	X/Y/Z:MSA35	X/Y/Z:MSA35
Table size	mm	500*600	600*600	600*700	800*800	800*1000
T-slot	mm	6*16*90	6*16*90	6*16*90	7*18*100	9*18*100
Max load capability	kg	300	300	300	400	400
Standard spindle		Motorized spindle	Motorized spindle	Motorized spindle	Motorized spindle	Motorized spindle
Spindle speed	rpm	3000-24000	3000-24000	3000-24000	3000-24000	3000-24000
Spindle power					5.5	5.5
Spindle taper		ER25-32	ER25-32	ER25-32	ER25-32	ER25-32
Maximum cutting feed rate (X/Y/Z)	m/min	8	8	8	8	8
Rapid speed(X/Y/Z)	m/min	X/Y/Z:15	X/Y/Z:15	X/Y/Z:15	X/Y/:18 Z:15	X/Y/:18 Z:15
Ball screw diameter/pitch	mm	X/Y/Z:32/5	X/Y/Z:32/5	X/Y/Z:32/5	X/Y:40/6 Z:32/5	X/Y:40/6 Z:32/5
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeatability	mm	±0.003	±0.003	±0.003	±0.003	±0.003
Air pressure	kgf/cm²	6	6	6	6	6
Net weight of machine	kg	3200	3400	3600	4800	5300
Area	mm²	1950*1895	1950*1895	1950*1895	2450*2150	2750*2150
Machine height	mm	2355	2355	2355	2673	2673

---
