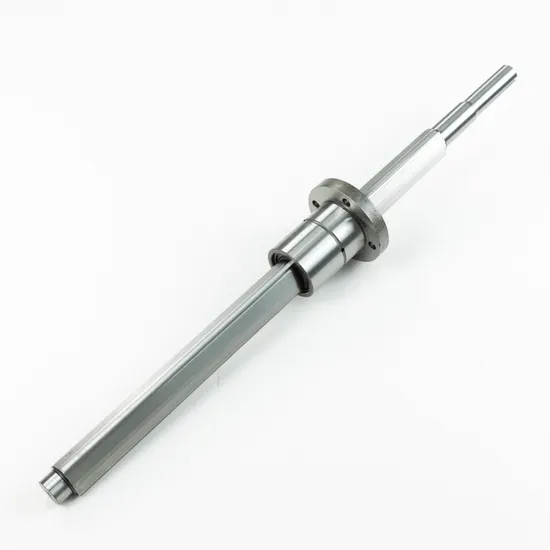

High Quality Custom CNC Ball Spline Chrome Steel CNC Machined Long Shaft

Product Description

Product Description
The spline is a kind of linear motion system. When spline motions along the precision ground Shaft by balls, the torque is transferred. The spline has compact structure. It can transfer the Over load and motive power. It has longer lifetime. At present the factory manufacture two kinds of spline, namely convex spline and concave spline. Usually the convex spline can take bigger radial load and torque than concave spline.

Product name	Ball spline
Model	GJZ,GJZA,GJF,GJH,GJZG,GJFG,
Dia	15mm-150mm
Material	Bearing Steel
Precision Class	Normal/ High/ Precise
Package	Plastic bag, box, carton
MOQ	1pc

Ball type:φ16-φ250
High speed , high accuracy
Heavy load , long life
Flexible movement,low energy consumption
High movement speed
Heavy load and long service life
Applicationgs:semiconductor equipment,tire machinery,monocrystalline silicon furnace,medical rehabilitation equipment
Detailed Photos

Product Parameters
Structure
Scope of application
Semiconductor equipment,tire machinery,monocrystalline silicon furnace,medical rehabilitation equipment.
FFZ size

Code and type	Nominal axial dia. d0	External dia. D	Length of spline nut L1	Max. length of shaft L	Standard rated torque		Basic rated load
					Dynamic torsion N-m	Stationary torsion N-m	Dynamic load C kN	Static load C0 kN
GJZ15 / GJF15	15	23	40	400	27.8	65.2	3.9	8.1
GJZ20 / GJF20	20	30	50	600	62.3	135.2	6.6	12.7
GJZ25 / GJF25	25	38	60	800	127.3	268.3	10.9	20.2
GJZ30 / GJF30	30	45	70	1400	155.7	318.7	11.1	20
GJZ32 / GJF32	32	48	70	1400	236.4	459.9	15.8	27.1
GJZ40 / GJF40	40	60/57	90	1500	548	1081.9	29.3	50.9
GJZ50 / GJF50	50	75/70	100	1500	880.6	1711.6	37.7	64.5
GJF60	60	85	127	1500	2135.9	4172.9	76.2	131.1
GJZ70 / GJF70	70	100	110/135	1700	2788/3153.4	4141.1	76.1	111.5/156.1
GJZ85 / GJF85	85	120	140/155	1900	3978/4437.2	6927.4	100.2	153.6/179.2
GJZ100 / GJF100	100	140/135	160	1900	6905.9	11737.2	147.9	221.3

If you have any needs,pls feel free to contact us and we will send you our catalog for reference.
