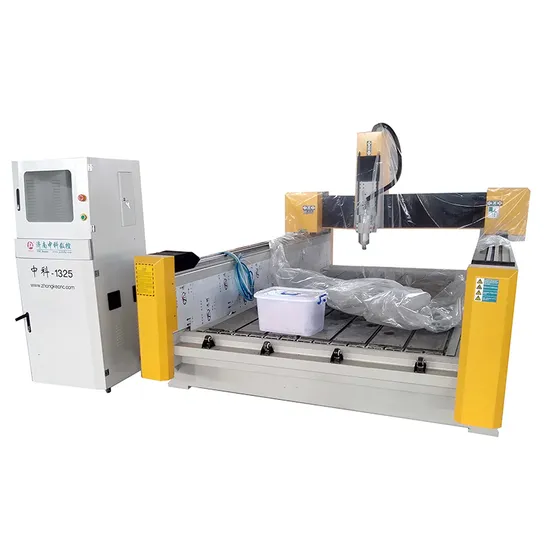

3D Marble Cutting Machine/Stone Engraving Machine CNC Milling Machine

Product Description

Product Description
The 3D marble cutting machine and stone engraving machine CNC milling machine are innovative and advanced tools that are revolutionizing the way that we work with stone. These machines are capable of creating intricate designs and cutting through even the toughest of materials with ease.
They offer tremendous potential for designers, architects, and artists, enabling them to create stunning and intricate structures that were once considered impossible. With precise and accurate cutting, the 3D marble cutting machine and stone engraving machine CNC milling machine produce clean and polished surfaces, revealing the inherent beauty of the stone.
These tools are highly effective for a range of tasks such as carving intricate shapes, cutting custom designs, engraving logos, and creating complex patterns. They enable professionals to provide unique and customizable solutions to a wide range of clients and projects.
Moreover, the precision and speed of these machines save valuable time and resources, enabling professionals to complete projects more efficiently while maintaining high quality and accuracy. This is particularly important when working with large and complex structures that require a high degree of attention to detail.
Overall, the 3D marble cutting machine and stone engraving machine CNC milling machine are a game-changer in the world of stone cutting and engraving. They offer tremendous potential for creativity and innovation while improving efficiency and precision without compromising on quality. As such, they are an essential tool for any professional looking to create stunning and sophisticated stone structures with ease and confidence.

Feature
1.Water cooling spindle with high speed,high efficency and little noise.
2.All of the spindles can work together to save you time and costs.
3.The lathe is founded by welded steel that ensures the high stability and longtime use.
4.Taiwan HIWIN square guide rails and Taiwan TBI ball screws with high precision,large load bearing and stable running.
5.High speed driver and Stepper enhance work efficiency.
6.Our controller is DSP,easy to operate
7.Equipped with professional Aluminum with PVC base with the high strength engineering plastics surface in order to ensure can bear large load and longtime working.
8.Adopt high powerful weled steel bed structure.
9.The Ball screw in transtimission improve the work ability.
10.Many parts can change according to your requirement.
Detailed Photos
Watwe cooling spindle
Best brand inverter
DSP control system
HIWIN square guide rails
Taiwan TBI ball screw
Hand oil lubricating
Stepper motor
Stepper driver

Product Parameters

Model	ZK1325
X,Y,Z axis working area	1300*2500*200mm
Whole structure	Weled steel bed structure
Table surface	Aluminum with PVC
X,Y,Z structure	Taiwan PMI/HIWIN Square linear guide rail
X,Y structure	Rack and pinion transmission, high speed and more stable;Y -double motor drive
Z structure	Imported ball screw, high precision
Max. idling speed	50m/min
Max. working speed	25m/min
Repositioning Accuracy	±0.05mm
X Y Z working Accuracy	< 0.02mm
Spindle	Water cooling spindle
Spindle rotating speed	6000-24000rpm/min
Diameter of tools	Φ3.175 -Φ20
Collect size	ER 25
Operation language	G code (plt, mmg, uoo, bmp)
Driving system	Stepper motor
Operating system	DSP control system(can be optional NK105)
Working voltage	220V/380V
Software	UcancamV8 / Type3 / Artcam software (option)

After Sales Service
1 we offer 1 year warranty
2 we offer 24 hourses technical support online
3 Druring the warranty, if there is part broken, we will offer you the same for free.
