| US$5,000.00-10,000.00 | 1 Piece (MOQ) |

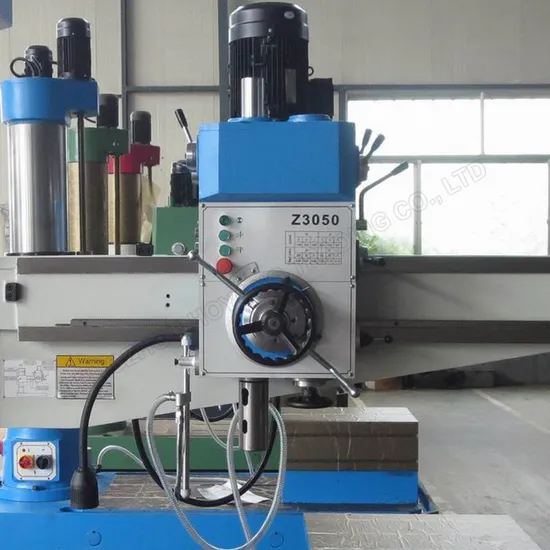

| DESCRIPTION | Z3050X16/1 | |
| Max drilling diameter | 50mm | |
| Distance between spindle axis and column | Max | 1600mm |
| Min | 350mm | |
| Distance spindle nose and working surface of base plate | Max | 1250mm |
| Min | 320mm | |
| Spindle travel | 315mm | |
| Spindle taper | 5# | |
| Range of spindle speeds | 25-2000 r/min | |
| Number of spindle speeds | 16 | |
| Range of spindle feeds | 0.04-3.20 mm/r | |
| Number of spindle feeds | 16 | |
| Table size | 500x630mm | |
| Travel of spindle head | 1250mm | |
| Power of main motor | 4kW | |
| Net weight | 3500kg | |
| Overall dimensions (LxWxH) | 2500x1070 x2840mm | |
