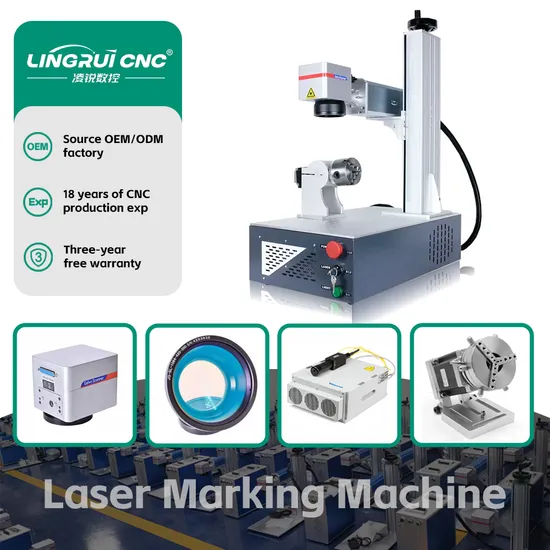

20W 30W Mini Portable Fiber Laser Marking Machine Laser Engraving Price for Metal Plastic Jewelry

Product Description

Product Description
Advantages of the new fiber laser marking machine: 1: Using raycus Laser Source, high beam quality, high single pulse energy.
2: Using SINO-GALVO high-speed galvanometer, zero drift, fast speed.
3: With dual red light positioning function, you can project a preview frame or outer contour on the processed product.
4: Using high-quality field mirror, the laser can be quickly positioned and form a precisely focused beam.
5: Environmentally friendly and no consumption, only electricity is needed for processing.
6: Applicable materials: aluminum, stainless steel, brass, copper, etc. There are also some non-metals such as nylon, light buttons, ABS, PVC, PES, etc.
Detailed Photos
Product Parameters
Sino-Galvo high-speed vibration mirror
Use SINO-Galvo high-speed mirror, zero drift, fast speed, low volume small temperature, fast running speed. High photoelectric conversion rate, improve work efficiency, stable performance, short response time, high -speed operation and rapid marking stable output, accurate carving, high efficiency, high light transmittance lens ultra -clear and unsatisfactory super large surface, long service life.
High -quality field mirror
Using high -quality field mirrors, you can quickly locate and focus on accurately. Together with the vibration mirror, use the laser to quickly locate and form accurate focus beam. The design and processing are highly designed. All olefins reach the radiation limit. The inner circle of the surface of the surface is good, uniform, good, good stability, high light transmission, high temperature resistance, and do not crack for a long time.
Handwheel
Equipped with a hand -shaken handle and coordinated with the straight beam standard, you can adjust the appropriate focal length according to the height of the processing product.
Raycus Laser Source
Using Raycus Laser Source, single pulse energy is high, the average output energy is high, the quality of the beam is high, it has the characteristics of peak power, high single pulse energy, and the diameter of light spots. Compared with the traditional laser, the cost is lower and the performance is more stable. The marking efficiency is high, the control center is used to increase the physical lock on the basis of software security guarantee.
Double Red light positioning function
Standard configuration dual red light positioning function, which can be projected by the processed product projection preview box or external contour. It helps users quickly locate the processing location through the processing preview of the product, and precise processing of the product.
Control system
Use JCZ marking machine special control system software to support a variety of software formats, stable systems, powerful functions, easy operation and easy to use, support 32 and 64 -bit operating systems such as Win7/Win8/Win10 For the functions, just set it to start working.

Brand	LINGRUI
Model	LR-11-DF
Laser Power	20W/30W/50W/100W/200W300wW
Laser Wavelength	1064nm
Fiber Cable Length	3m
Pulse Width	20ns
Repetition Frequency Range	1-600kHz
M2	<1.8
Max.Single Pulse Energy	1.25mJ
Output Power Stability	<5%
Output Beam Diameter	7±0.5mm
Power Range	0-100%
Marking Range	110*110mm/200*200mm/300*300mm
Minimum Line Width	0.01mm
Minimum Character	0.1mm
Marking Speed	≤7000mm/s
Marking Depth	Depend on materials
Repeatability Accuracy	±0.001mm
Marking Format	Graphics, text, bar codes, QRcode, automatically date, batch number, serial number, etc.
Graphic format supported	Ai, plt, ;dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif
Working Voltage	220V±10%/50Hz or 110V±10%/60Hz or Customized
Unit Power	<0.5kw
Working Environment	Clean and dust free or dust less
Working Condition Humidity	5%-75%, 0-40 degree, free of condensed water
Laser lifetime	>100000 hours
Net weight	75kgs
Packing Size	850*650*1450mm

Company Profile
We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates. If you need it, our engineers can provide technical support on-site in your country. Before the machine is shipped, we will provide you with comprehensive instructional videos.
7 * 24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
Certifications
FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes,we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7.Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1)T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.

---
