China Chipboard Particle Board /Particleboard (PB) Production Line

Product Description

China Chipboard Particle board /Particleboard (PB) Production Line
>>>> Who we are?
We China manufacturer and supplier of Particle board making machine+ MDF board making machine +OSB board making machine. if you want to produce these board, we can offer you the full necessary production line.
With many years production experience, and adhere to continuous innovation and improvement, with specialized R&D center, obtained a number of research and development patents, with experienced technians and engineers, and professional sales team and after-sales team, We have beome one China's high-end Wood based panel machinery manufacturing enterprise.
According to your own conditions like the budget, factory room and other factors, we can offer you the suitable, good and high quality machine for help you produce good quality panel.
For us, we know clearly that only keep machine good quality, can let us develop longer and better. Therefore, we always keep to choose good material and parts to make our machine, and during the whole machine production process, be made by experienced workers, and through many times test and monitor, to make sure each production step is good, to make sure the whole machine is good

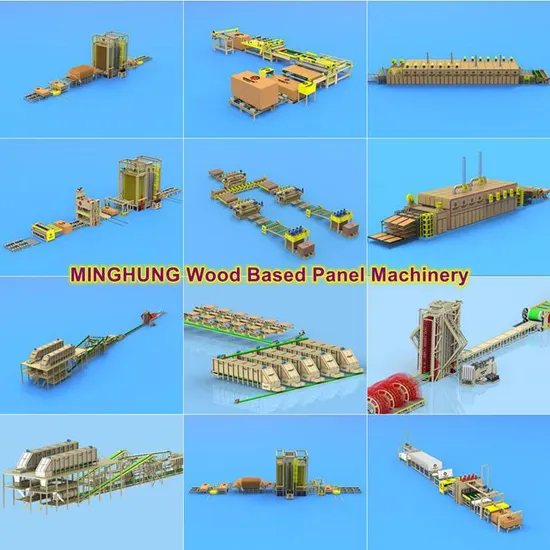

>>>> Mainly Particleboard Production Line Introduction

Vibrating screening, for screening big wood strands, suitable strands, and sawdust.
Rotary drum dryer, for drying wet strands/flakes
Mat forming machine, for spreading glue on wood strands, seperately spreading glue on surface strands and core strands
Continuous pre press machine for pressing particleboard and discharge its inside air
Automatic Multi opening hot press machine, for pressing the particleboard be in required thickness and be solid and strong.
High accuracy sanding machine for make particleboard thickness accurate and surface smooth
Particleboard made by all kinds of branch buds, small wood, fast-growing wood, wood chips and other cutting into a certain specification of debris/strands/shavings, after drying, mixed with glue, hardener, water repellent, etc., under a certain temperature and pressure to make a wood-based board, particles arranged uneven.
Particle board production machine for making particle board, and particle board can be used for making Kitchen cabinet, substrate, cabinet countertop, floor bedding board, housing flooring board.
Particle board can be different size as different country and market or clients requires. this production line for making 1220*2440mm particle board. If you need produce other size, also no problem.
The full particle board production machine, through process wood and trunks, straw, or other material, to make them into small and certain wood strands size, then through the whole production step like drying, gluing, forming, pressing, cooling, sanding, to make the required particle board size and thickness.
What are advantages of Particle board? compare with other wooden panel
The major advantages as below:
> it is a cost-effective option against plywood or medium density fiberboards.
> Laminated particle boards and veneered particle boards provide decorative looks in low price as compared to plywood.
> It provides smooth and flat surface for sticking decorative laminates or wood veneer.
> This particle board is stronger and aesthetically attractive. Thus laminated particle board and veneered particle boards are now used in mass production of office furniture.
> Due to its lightweight property, particle board can be easily transported and handled.
> Particle board has more screw holding capacity as compared to MDF, so it is widely used to make furniture which can be assembled using screws.
> It requires minimal maintenance and is easy to clean.
> Particle boards have thermo-acoustic insulation properties, so they are very much useful in speakers and in false ceiling of auditoriums, theaters, etc.
> It is an eco-friendly material as it uses wood waste such as wood chips, sawdust, wooden shavings, and bagasse which is residue of sugarcane after the juice is extracted.
>>>> Specification of the Full Particleboard Production Line
<1> Drum Chipper

Inlet size	240*750mm(H*W)
Blade quantity	2pcs
Knife roll diameter	800mm
Power	132kw

<2> Ring Chipper

Wood strands thickness	0.4-1.0mm
Capacity	5000-8000kg/h
Knife length	449mm
Power	250kw

<3> Triple Pass Drum Dryer

Cpacity	10000kg/h
Original moisture	≤80%
End moisture	2%
Power	440kw

<4> Vibrating screening

Screening cloth	2
Screening area	12 m2
Screening capacity	70m3/h
Power	11kw

<5> Gluing system

Capacity	500m3 /per day
The complete gluing system includes: <1> dispensing system <2> weighing unit <3> measuring bin for surface and core <4> Paraffin emulsion <5> Electric control system

<6> Forming line

Surface forming machine	2 sets
Capacity	2 *45m3/h
Core forming machine	1 sets
Capacity	65m3/h
Forming width	1300mm
Forming thickness	30-120mm

<7> Continuous pre-press

Convey speed	10-30m/min
Working height	1250mm
Belt width	1500mm
Power	75kw

<7> Hot press

Pressure	1200 ton
Hot plate size	2650*1680*120mm
Layers	22
Heating medium	Oil
Heating temperature	≤180ºC
Closing time	10s

<8> Sanding machine

Max sanding width	1300mm
Sanding thickness	3-50mm
Sanding belt size	1350*2800mm

Please note: each machine can be different specification according to different production capacity, panel size and other factors.
>>>> Share loading pictures of our particleboard machine
>>>> MINGHUNG CLIENTS
>>>> Related OSB board Making Machine
Forming Line for Oriented strand board
OSB board glue system
If you want OSB board, our factory also can offer the full production line for you

>>>> FAQ
<1> Machine Installation:
We can send engineers go to install machine, degue, and teach your workers
<2> Warranty:
15 months
<3> Production time:
3 months
<4> Payment terms:
T/T or L/C
<5> Factory layout:
After machine production start, we can make factory layout for you
<6> If meet problem when operation machine
Contact us at the first time, our engineers will help check and solve quickly

Welcome contact us for more information if you are interested, we will reply you quickly

---
