4u Optical Transmission Communication Platform Transmitter Receiver EDFA Switch in One

Product Description

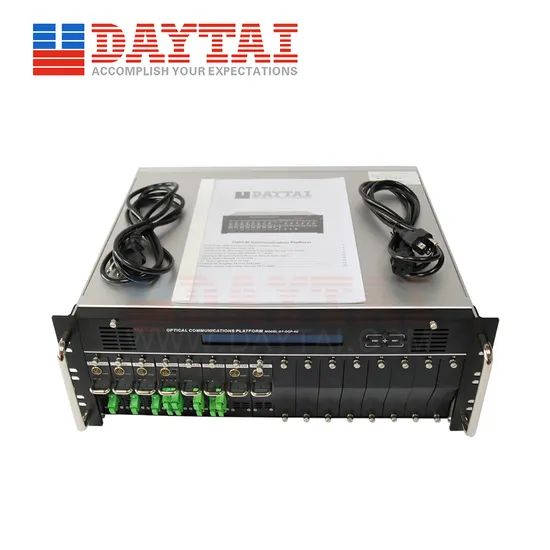

★Description DT-OCP-4U is an optical transmission platform, with strong universality, high mounting density, powerful function and flexible
combination. The rack, CMM unit and P series built-in power supply are the basis of this product. The 19inch (4U) standard rack
has 16 universal slots and fan cooling device; the CMM unit has LCD status display and operation keys. According to optical fiber
network design requirements users can select the following application modules: ⊙RFS series RF switch module
⊙AMP series pre RF amplifier module
⊙OSW series optical switch module
⊙EDFA series optical amplifier module
⊙FR series forward path optical receiver module
⊙T series forward path optical transmitter module
Insert the application modules into the 4U rack and put the rack into the cabinet, thus constitute a complete master or center
room equipment.
Features:
⊙LCD displays the work status of all devices in the rack.
⊙The operation button with clear function, easy to operate.
⊙Automatic alarm by SNMP TRAP when any module or fan has fault.
⊙Panel buttons control the functions and status of all devices in the rack.
⊙Rear panel has Ethernet interface and RS232 communication port, which are used to manage the network.
More detailed technical information, please refer to the relevant sections of CMM status control and display unit.
★Specification

Item	Unit	Parameter
Input voltage	V	AC 100~240
Power	W	350
Input connector		IEC standard socket
+24V output voltage	V	+24.0~+24.6 (@12A)
-5V output voltage	V	-5.25~-5.1 (@6A)
+5V output voltage	V	+5.1~ +5.3 (@2A)
DC output and data communication connector		48-pin connecting socket
Output clutter and noise	mV(VPP)	≤100
Typical efficiency	%	85
Communication		RS485 protocol
Ambient temperature range	ºC	0~+40
Electromagnetic compatibility		IEC728-1
Dimension	mm	45×155×300
Weight	kg	1.3

Optional Modules Optical Amplifier Module Optical Switch Module RF Switch Module CATV Signal Amplifier Optical Receiver Optical Transmitter
