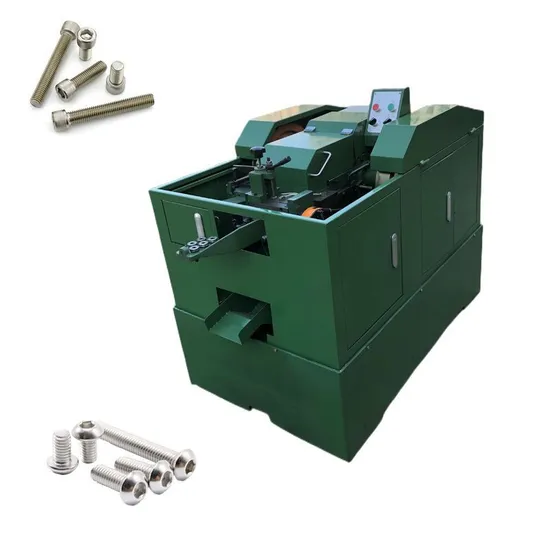

Advanced Sensing Technology Pre-Programmed Settings Drywall/Slotted Head/Self Tapping Screw Making Machine Cold Heading Machine

US$8,000.00-120,000.00 1 Set (MOQ)

Basic Info.

Model NO.
4-20A
Power Source
Hydraulic Pressure
Feature
Automation
Certification
ISO9001, CE
Warranty
24 Months
Customized
Customized
Advantage
Long Service Life
Condition
New
Keywords
Self Tapping Screw Machine
Name
Screw Making Machine
Price
Factory Direct Supply Price
After Sales
Provide Solution Within 24 Hours
Usage
to Make Different Screw
Brand
Ronen
Video Outgoing-Inspection
Provided
Merit
Run Steadily
Raw Material
Steel Low Carbon, Stainless
Technical Merit
Taiwan Technology
Confirmation
CE, ISO9001
Warranty Period
1 Years
Package
Wooden Case or as Required
Samples Service
Free Samples
Delivery Time
in Stock, or 30-50 Working Days
Transport Package
Wood or as Required
Specification
Machine
Trademark
Ronen
Origin
Hebei
Production Capacity
30set/Month

Product Description

Product Description

Functions
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Application of equipment
It is used for chipboard screws, drywall screws, self drilling screws, self tapping screws, wood screws, machine screws, furniture screws, electronic screws, precision screws, fasten piece used for car and motor car, nuts, spring washer, rivets, pin bolt and split pin, steel structure used rivets and fasten pieces, kinds of metal special-shaped pieces etc products' upsetting and forming.

Technical Parameters
Modle
 X15-30G
 X15-37G
 X15-50G
 X15-63G
 X15-76G
 X15-100G
 Z32G-51
Main Motor
KW(4HP)
 3
 3
 3
 3
 3
 3
 5.5
Diameter
(mm)
 2.3-5
 2.3-5
 2.3-5
 2.3-5
 2.3-5
 2.3-5
 2.3-5
Length
(mm)
 6-30
 6-37
 6-50
 6-63
 6-76
 75-100
 Max.15
Main Die (mm)
 Φ34.5*50
 Φ34.5*55
 Φ34.5*67
 Φ34.5*80
 Φ34.5*100
 Φ34.5*115
1stPunch
(mm)
 Φ31*73
 Φ31*73
 Φ31*73
 Φ31*73
 Φ31*73
 Φ31*73
2rdPunch
(mm)
 Φ31*73
 Φ31*73
 Φ31*73
 Φ31*73
 Φ31*73
 Φ31*73
Cutting Die
(mm)
 Φ19*35
 Φ19*35
 Φ19*35
 Φ19*35
 Φ19*35
 Φ19*35
Cutter
(mm)
 10*32*63
 10*32*63
 10*32*63
 10*32*63
 10*32*63
 10*32*63
Speed
(pcs/min.)
 260-300
 190-215
 180-195
 130-150
 120-135
 85-100
 Max.800
adjustable
Weight(kg)
 2300
 2300
 2300
 2300
 2300
 2300
 4200


Modle
 X065
 X0685
 X06127
 X0860
 X08100
Main Motor
KW(4HP)
 4
 4
 5.5
 7.5
 7.5
Diameter
(mm)
 Max.6
 Max.6
 Max.6
 Max.8
 Max.8
Length
(mm)
 Max.50
 Max.85
 Max.127
 Max.60
 Max.100
MainDie (mm)
 Φ45*108
 Φ45*108
 Φ45*150
 Φ60*128
 Φ60*128
1stPunch
(mm)
 Φ36*94
 Φ36*94
 Φ36*94
 Φ38*107
 Φ38*107
2rdPunch
(mm)
 Φ36*60
 Φ36*60
 Φ36*60
 Φ38*107
 Φ38*107
Cutter
(mm)
 10*25
 10*25
 10*25
 12*28
 12*28
Speed
(pcs/min.)
 130
 80
 70
 60-100
 60-80
Weight(kg)
 2200
 2200
 2500
 4000
 4200







Processes and Machines Needed
Products Show


Finished Products



Company Profile
Ronen expertise can be found in the most varied
Fastener Equipment end products.
We reliably accompany you through everyday life. Mostly unnoticed. After all, our precision-Fastener parts and Cold Forging Technology are embedded into the products of our customers and, although not always visible,they fulfil mission-critical functions there.



FAQ

1. who are we?
We are based in Hebei, China, start from 2018,sell to Domestic Market(53.00%),Eastern Europe(10.00%),Eastern Asia(6.00%),Mid East(6.00%),Southeast Asia(5.00%),Western Europe(5.00%),Africa(5.00%),South America(3.00%),Southern Europe(2.00%),Northern Europe(2.00%),North America(2.00%),Central America(1.00%). There are total about 201-300 people in our office.2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cold heading machine,cold forging machine,bolts nuts machine,screws machine,threading machine
4. why should you buy from us not from other suppliers?
Over 20 years of experiences in designing and manufacturing high level of metal forming machines
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,French,Russian
