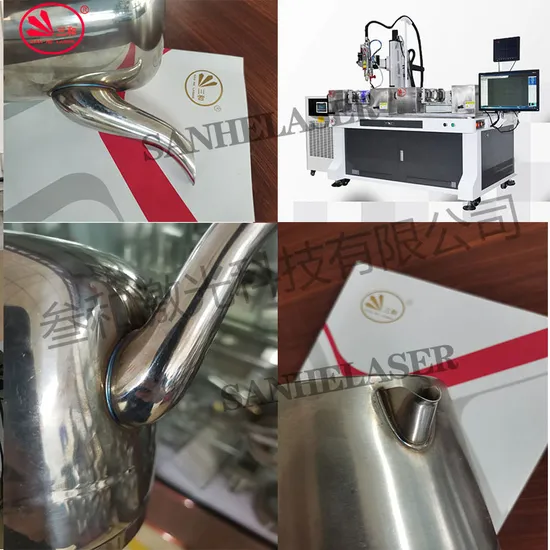

Turkish Stainless Steel Spout Welding, Pot Body Welding, Turkish Hot-Selling Laser Welding Machine

Product Description

Model	3HE-MF500W	3HE-MF750w	3HE-MF1000w	3HE-MF1500w	3HE-MF/2500w
Optical Parameters
Work Model	Continuous/ Modulation
Max Power(W)	500	750	1000	1500	2500
Wavelength(nm)	1080
Repetitive Rate(Hz)	0-5000		500-5000		0-5000
Pluse Width(ms)	0.05-50		0.05-0.6		0.05-50
Output Power Stability	<2%
Red Light	yes
Output Connector	QBH Customizable)
Fiber Core Diameter	25,50,100,Optional				50,100,200, optional
BBP(mm. mrad)	0.4,2,5				2,5,10
Input Voltage(VAC@47-63H2	200-240, Single- phase				340-420,Three- Phase-Five-Wire
Cooling way	Water Cooling
Operating Temperature(ºC)	10-40
Power consumption(kw)	<4	<5	<7	<8	<9
Control Model	External RS232/ External AD
Power Adjustment(%)	10-100

1. The fiber continuous laser welding machine uses 500W-2000W laser, the laser has a long service lifeand the service life can reach 100,000 hours. 2. The electro-optic conversion efficiency is high, and the energy of the power shaving is 25%-30% converted into laser, and the fiber conversion rate is more than 10 times that of the YAG laser. 3. The whole machine has no consumables. YAG pulse welding machine should replace the xenon lamp and lens regularly.
4. The whole machine has low energy consumption, saves electricity, high stability, maintenance-free, and low cost of use.
5. The laser welding energy density is high, welding speed is four times that of YAG pulse.the weld seam is thin,the thermal deformation is small, and the heat affected zone is narrow and deep.
6. Optical fiber output, easy to match with automated workbench or robot to improve production efficiency,and can meet 24 hours of continuous work.
7. Customizable large workbench and XYZ axis travel.

---
