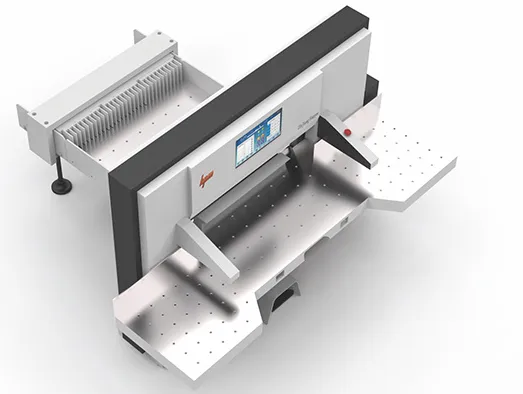

Automatic Paper Cutter Intelligent Heavy Duty Guillotine Programmable Hydraulic Paper Cutting Machine

Product Description

Program Control Paper Cutter(SQZK S16 )

Computer System
1. The up-to-date 16" Widescreen LCD, full touch screen;Inovance PLC control.
2. Step less speed adjustment function with latest technology , to make the cutting speed from 30 to 48 times within 1 minute , no need to change knife angle for different cutting material.
3. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 30-38m/min. 20-30 m/min . 15-20 m/min. 12-15 m/min .(four class to adjust).
4. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes.
5. With USB, transmit data, to convenient operator make programming and arrangement via PC.
6. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic prompt switch failure.make the machine more convenient maintenance.
7. The backgauge is driven by a Inovance servo-motor with four speed levels.
8. Use Italy oil pump and hydraulic system.


Machine Performance
1. Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
2. Clamp press paper stack through hydraulic system, the spring re-position.
3. Worm gear drive mechanism, hydraulic clutch, mechanical brake.
4. Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.
5. One-piece, slot less and chrome-plated cast iron work table is sturdy and easy to maintain.
6.Import ball screw with double linear guides to drive backgauge.
7.High safety infrared protection device according to CE standard.
8.Main electronic units are from French TE famous international brands.





Configuration Listing

No.	Name	Brand, specification & model	Origin of brand
1	Background LCD	16''Color touch Interface	China
3	Backgauge position motor	INOVANCE servo motor	China
4	Pick-up	Autonics	Korea
5	Limit switch	TE	France
6	Guarding motor	TE	France
7	Air switch	TE	France
8	AC Contactor	TE	France
9	Miniature relay	TE	France
10	Switching power supply	TE	France
11	Power switch	CANSEN	China
12	Press-button	TE	France
13	Ball screw	High accurate	Korea
14	Linear guider	High accurate double linear guides	Taiwan
15	Hydraulic system	Combination Valve	Germany
16	Oil Pump	HP	Italy
17	Bearing	NSK	Japan
18	Work Table	Slotless and plated chromium work table	China

Technical Parameter

Model	Unit	92	115	130	137	168	188
Max.Cutting Width	cm	92	115	130	137	168	188
	inch	36.2	45.3	51.2	53.9	66.1	74
Max.Cutting Length	cm	92	115	130	145	168	188
	inch	36.2	45.3	51.2	57.1	66.1	74
Max. Cutting Height	mm	120	165	165	165	165	165
	inch	4.7	6.5	6.5	6.5	6.5	6.5
Min. Cutting Size (without false clam plate)	mm	25	30	30	30	30	30
	inch	1	1.2	1.2	1.2	1.2	1.2
Min. Cutting Size (with false clamp plate)	mm	90	90	90	90	90	90
	inch	3.5	3.5	3.5	3.5	3.5	3.5
Front Table Length	cm	63.2	71.5	73	73	75	75
	inch	24.9	28.1	28.7	28.7	29.5	29.5
Max.Clamp Pressure	N	30000	40000	40000	45000	60000	70000
Max. Cutting Speed	time/min	45	46	46	46	46	46
Main Motor	KW	3	4	4	4	8.5	8.5
Net Weight	Kg	2300	3700	3900	4100	6200	6600
Gross Weight	Kg	2500	4100	4300	4500	7000	7400
Packing Size(L×W×H)	cm	228×140×188	285×190×210	285×190×210	310×190×210	360×205×220	380*205*220
