Hanbs Double-Spindle CNC Lathe of Sliding Headstock CNC Lathe

Product Description

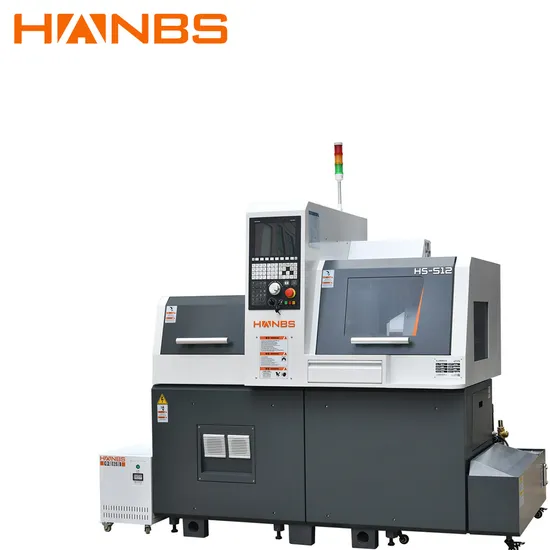

HS-512 Double-Spindle CNC Lathe of Sliding Headstock CNC Lathe
Product description: Wide Material Compatibility:
Suitable for machining various materials, including stainless steel, titanium alloys, copper, and aluminum, making them ideal for high-precision industries like medical devices, aerospace, and automotive parts. Improved Surface Quality:
The stability during machining results in better surface finishes, reducing the need for subsequent polishing or finishing processes. Labor Resource Savings:
High automation levels enable these lathes to operate for extended periods without human intervention, reducing the number of operators required and easing labor intensity. Product Photoes
Enhanced Machining Flexibility:
Dual-spindle tooling allows for concurrent roughing and finishing operations or different types of machining processes, improving the flexibility and versatility of the machining process. Minimized Clamping Errors:
The dual-spindle design enables multiple operations to be completed in a single clamping, reducing errors associated with repeated clamping and ensuring higher machining accuracy.
Its operation panel, unlike the others, is erected in the very center, so that the movement of the spindle and the back-axis can be observed at the same time during operation.
Enhanced Precision and Accuracy:
Machining both ends of a workpiece in a single setup improves concentricity and overall accuracy, which is crucial for precision parts. Greater Machining Flexibility:
Dual spindles enable the execution of various machining operations, such as roughing and finishing, simultaneously, providing greater flexibility in the manufacturing process.
Product Information

Maximum processing diameter	Φ12mm
Maximum processing length(2.5d in the mode without guide bush	60mm
Axial maximum drilling diameter	Φ5mm
Axial maximum tapping size	M5
Maximum spindle speed(for short-term use only)	10000rpm
Radial maximum drilling diameter	Φ5mm
Radial maximum tapping	M4
The maximum clamping diameter of the back spindle	Φ12mm
The maximum workpiece extension of the back spindle	30mm
The maximum drilling diameter of the back spindle	Φ5mm
The maximum tapping diameter of the back spindle	M5
The maximum speed of the back spindle(only for short-term only)	12000rpm
The maximum take-out length of the workpiece	40mm
Side powered tool unit	3
Knife row(12*120*5+6*120*1)	5
Fixed knife(Φ25mm*4*2 for the front and back;Φ25mm*4 for the back)	13
The maximum number of tools installed as standard	21
Z1,Z2,X2,Y Axis fast forward speed	24m/min
X1 Axis fast forward speed	18m/min
Spindle center height	1000mm
Input power	7KW
Weight	1500kg
Dimensions(WXDXH)	1950*1100*1700mm

Processed Product Display
process material
Factory
Certifications
Utility model patents Utility model patents Utility model patents
Utility model patents Utility model patents Utility model patents
patent loading and shipping
visiting


Q&A
1. What is a dual-spindle small Swiss-type CNC lathe?
A compact, high-precision machine with two spindles for machining both ends of a workpiece simultaneously. 2. How does it improve production efficiency? By machining both ends of a workpiece at the same time, reducing cycle time. 3. What types of parts are best suited for this lathe? High-precision, complex parts like medical devices, aerospace components, and automotive parts. 4. How does the dual-spindle design enhance accuracy? Ensures better concentricity by machining both ends in one setup. 5. Can it handle different materials? Yes, it works with various materials, including metals and plastics. 6. What impact does it have on tool wear and maintenance? Distributes the workload, extending tool life and reducing maintenance. 7. Is it suitable for automated production? Yes, it's ideal for high-volume, automated manufacturing. 8. How does it improve surface finish quality? Simultaneous roughing and finishing operations reduce tool marks. 9. How does it improve workflow efficiency?
. Reduces the need for transferring workpieces between machines.

---
