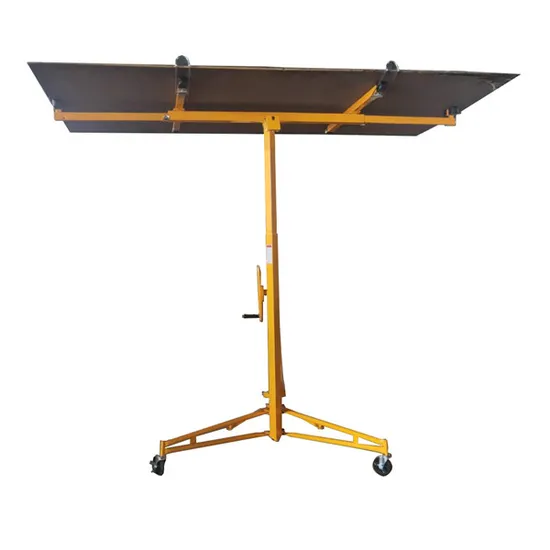

Drywall and Panel Hoist Max Lifting Weight 68kgs Max Height 4.8m

Product Description

Board lifter SR602

Product Name	Dryawll and panel hoist
Max loading	68kgs
Max height	3.35M or 4.7M
Carton size	129*50*17CM /175*50*17cm
Fuction	lifitng the panel

Drywall lift can be assembled or disassembled in seconds with not tools required
Tilting cradle brings loading height down to 34 inches for easy installation of drywall to walls. sloped or level ceilings up to 11-Feet tall
Integral cradle outriggers extend to handle up to 4-by-16-foot sheets
Disassembled unit fits into car trunk
Maximum load rating of 150 pounds ensures plenty of support for lifting all standard drywall sheets
Maximum load : 68kg
Plate support tilt 60 and swivel360 horizontally; automatic brake
Plate support expandable with3 positions
Extensions retracted
spacing of 54 CM
spacing of 84 CM
Max working height: 3.35 M (11FT)
Minimum working height: 1.38m
Arm length: 90CM + support hook
Maximum opening of extensions: 2.94M
Minimum opening of extensions: 1.25 M
3 wheels for steering 10CM (4")in diameter with brake
winch with tube
Packing : each pc/ctn
LIGHT MODEL : net weight:36kgs
sR602: net weight:39kgs
150lbs Load CapacitySturdy welded steel construction with powder coating for longevity and durability. It can attach to level ceilings and walls with a maximum load of 150 pounds
4ft - 11ft Adjustable Height,Lifts 11ft ceiling & 11ft wall. Apply various drywall panels up to 4ft*11ft
3 Wheels and Built-In Winch with Brake. The drywall lift features 3pcs of 4" caster wheels for easy rolling, foot stops to keep the lift in place and built-in winch with brake to guarantee safety
One Person Operation ,This Sturdy and stable drywall panel lift lets you lift drywall and sheet rock without assistance
Easy to Assemble & Disassemble, Quick tool-free setup and dis-assembly for storage, no tools required. Ideal for both home and commercial use

---
