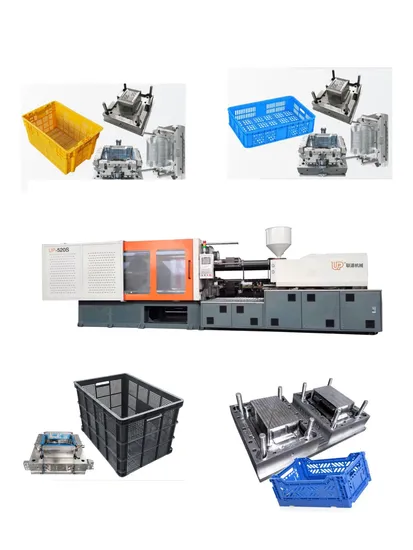

520 Ton Fruit Vegetable Basket Crates Horizontal Injection Molding Moulding Machine

Product Description

China servo injection molding machine.

A. modulus of capacitance: The position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).standard injection molding machine manufacturer

B .nozzle parameters: spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.standard injection machine. C. code mold parameters: code mold hole, slot size.ce standard injection molding machine. D .Ejection mechanism: The position of the ejection point and the diameter of the ejector rod, and if necessary, the ejection force and ejection stroke are also provided.
E. Mold opening stroke and maximum opening distance.plastic injection machine
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 3200Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.

Technical Parameters	Model UP-520T
Injection Unit	A	B	C
Screw diameter (mm)	80	85	90
Shot Volume (cm3)	2135	2410	2702
Injection weight (g)	1943	2194	2495
injection pressure (Mpa)	168	148	132
Screw speed (rmp)	230
Clamping Unit
Clamping force (KN)	5200
Open stroke (mm)	850
Max Mold height (mm)	810
Min Mold height (mm)	330
Space between tie bars(mm)	830x830
Ejector force (KN)	150
Ejector stroke (mm)	240
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	45(63)
Heating power (KW)	31.5
Machine dimension (M)	8.4x2x2.76
Machine weight (T)	21
Oiltank cubage (L)	900

FAQ
1.Can we visit your factory?
Sure. We are in NINGBO. For overseas customers, you can fly to Ningbo lishe International Airport. We can
pick you up in the Airport. Or shanghai Capital International Airport. Currently we provide visit online by video

2.How can we get the exact price of injection molding machine?
Contact us with the products weight, drawing, annual quantity. We can recommend our machine models
with quotation.
3.Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
4.How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online
support, video technical support or field installation assist.
5.What is the lead time?
For customized machine, it takes about 30-60 days after deposit. For stock machine, fast shipment.
6.What is the warranty period for your machine ?
18 months warranty for components and technical support .
7.Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the
machines according to customers products, thus with short cycle time, high production, therefore with
higher profit.
8.How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission
the machine, also train the customer's employees.
9.What's union power machinery advantage?
Our factory can provide customers with turnkey projects. Including plant design, injection molding machine and
mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the
full set of machines after testing in our factory. It will save a lot of cost and time.

---
