Pege Cryogenic Deflashing Machine for Plastic and Rubber Deflashing

Product Description

Introducing China's Premier Automatic Rubber and Plastic Burr Cleaning Machine Manufacturer
Product Description As temperatures plummet, rubber and plastic parts enter a transformative phase where they harden, become brittle, and crystallize, gradually losing their innate flexibility. During this brittle phase, these materials are highly susceptible to breakage under external pressure. The flash of molded products, being significantly thinner than the main product, becomes brittle much sooner at low temperatures. Our cutting-edge cryogenic deflashing machine harnesses this principle, operating within the optimal window when the flash is brittle, yet the product retains its elasticity. By deploying high-speed, specialized plastic media, it effectively eradicates brittle burrs without compromising the integrity of the product itself.
FUNCTIONS
This versatile machine excels at eliminating flash from small rubber and plastic components such as O-rings, gaskets, and an array of other molded parts, ensuring pristine product presentation.
Utilizing advanced cryogenic processing technology, flashes are initially frozen before being precisely removed by high-speed projection media (Polycarbonate blast). This process significantly enhances the surface quality of molded rubber and plastic parts.
SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T	PG-80T	PG-100T/120T	PG-150T

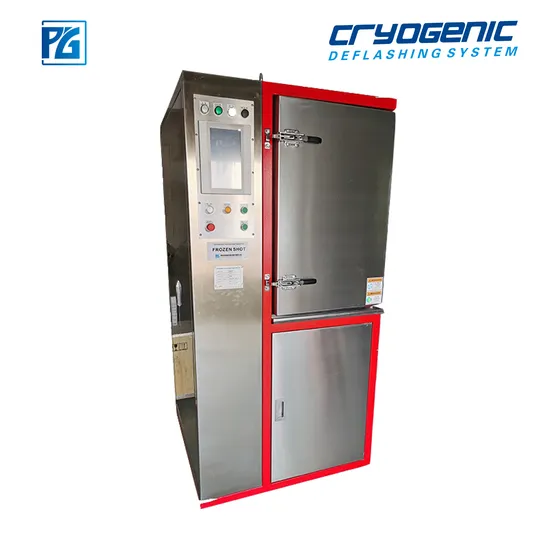

MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM	1100*1200*2000MM	1200*1250*2200MM	1300*1350*2250MM
WEIGHT	700KG	850KG	1000KG	1500KG
POWER	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph	7Kw*3Ph	8Kw*3Ph	9Kw*3Ph
TEMPERATURE	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC
PRESSURE	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
BARRAEL CAPACITY	60L	80L	100L or 120L	150L
EFFECTIVE CAPACITY	20L	30L`	40L`	50L`
WHEEL SPEED	3000rpm - 7200rpm	3000rpm - 7000rpm	3000rpm - 7000rpm	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen
OPETATION MODE	Touch Screen	Touch Screen	Touch Screen	Touch Screen
FRAME	SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER	AL φ250mm	AL φ300mm	AL φ350mm	AL φ350mm
BLASTING SPEED	105.7m/s	123.3m/s	143.3m/s	143.3m/s

MACHINE INNER COMPONENT PICTURES
APPLICATIONS
A. Versatile O-rings and diverse irregular rubber components of varying materials and sizes.
B. Intricate micro electronic product components.
C. Precision-crafted elastomeric parts.
D. High-precision injection molding plastic components.
E. Innovative R & D part trials.
F. Premium die-casting products, including zinc, aluminum, and magnesium alloy components.
FEATURES
High Efficiency: This revolutionary machine can effectively replace about 60-80 workers, revolutionizing the process of flash removal.
High Precision: Capable of removing minute and hardened flashes beyond the capability of manual labor, it significantly enhances product precision.
Low Cost: Our machine delivers substantial cost savings compared to traditional manual processing methods.
