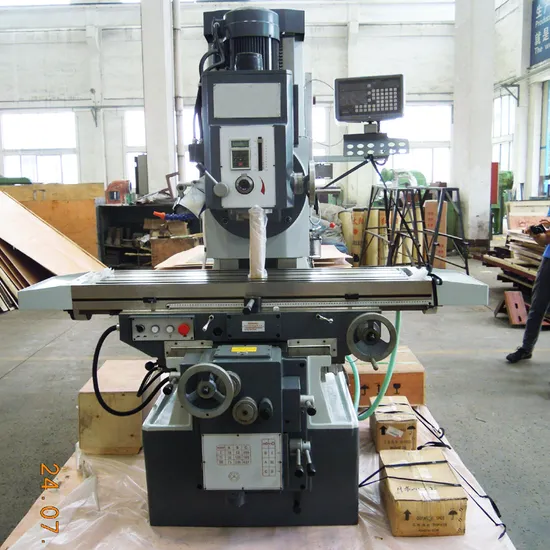

Universal High Precision Xa7140 Bed Type Milling Machine

Product Description

Universal High Precision XA7140 Bed Type Milling Machine
Standard accessories:
Quartz lamp,
cooling,
emergency stop,
CE standard electrical parts,
three axis automatic feed
Optional accessories:
3-axis SINO digital display, Flat pliers 200mm,
X,Y axis change to ball screw,
Universal dividing head F11160A
Rotary table TS400A
Spindle protection
LED light

Model	Unit	XA7140
Table size	mm	1400x400
T slot / Size ( Width ) / Centre distance	no	3/18/100
Max. load of Table	kg	800
Longitudinal travel	mm	800
Cross travel	mm	400
Vertical travel	mm	150-650
Spindle taper		ISO50
Quill travel	mm	105
Spindle speed /step	rpm	18-1800 variable
Spindle axis to column surface	mm	520
Spindle nose to table surface	mm	150-650
Longitudinal/cross feed	mm / min	18-627/9
Vertical		18-627/9
Longitudinal/cross rapid speed	mm / min	1670
Rapid Traverse vertical		1670
Main motor	kw	7.5
Feed motor	kw	0.75
Elevating motor for headstock	kw	0.75
Coolant motor	kw	0.04
Overall dimension	mm	2290x1770x2120
Machine weight	kg	3860

TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.

---
