Meanwell Driver 140lm/W IP65 100W 150W 200W UFO LED High Bay Light with PC Cover Shopping Mall Workshop Pendant Light

Product Description

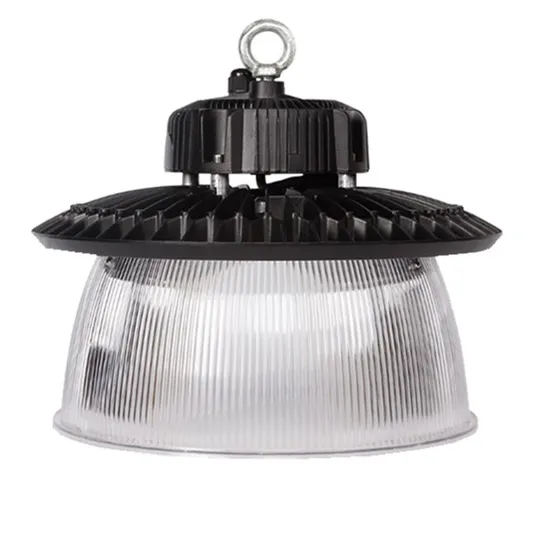

Meanwell Driver 140lm/W IP65 100W UFO LED High Bay Light with PC Cover
Specifications of 100W UFO LED high bay Light :

100W UFO LED HIGH BAY-120D
Item No.:		RB-HB-100WU2
Input Voltage:		AC 100-277V
Freqency Range:		50Hz~60Hz
LED Chip:		Epistar 2835
Power Factor:		>0.98
Power Efficiency:		>92%
Luminous Efficiency:		140LM/W
LED Power		100W
LED QTY:		133 pcs
LED Working Voltage:		DC 42~48V
System Consumption:		102W
LIGHT Luminous Flux	Warm White	14000LM
	Pure White	14000LM
	Cool White	14000LM
Viewing Angle:		120/90/60 degree
Center Luminance	Height 6M	161LUX
	Height 8M	91LUX
	Height 10M	58LUX
Illuminance Area	Height 6M	Dia.1893CM points visible
	Height 8M	Dia.2525CM points visible
	Height 10M	Dia.3156CM points visible
Illuminance Uniformity:		>0.6
Color Temperature	Warm White	3000K~3500K
	Pure White	4000K~5500K
	Cool White	6000K~6500K
Color Rendering Index		Ra>80
Light Distribution:		LED points visible
LED Junction Temperature:		≤115ºC
Working Temperature:		-35ºC~65ºC
IP Grade:		IP65
Working Life-span:		50000 H
Power Line:		1.0 mm² three line
Connect Wire	Brown	L
	Blue	N
	Yellow / Green	G
Certificate		CE/ROHS
Size:		Ø280*H165mm

Primary Competitive Advantages of UFO high bay LED Light :
1. We produce our own LED drivers, so we can control the costs and ensure the quality for customers;
2. Very good after-sale service, 5 years warranty, if there are any quality problems within warranty period, we will bear all the costs to replace new parts or new lamps for customers;
3. AC100-277V, applicable to all countries in the world; 347V also can be made;
4. Super high lumen efficiency, can be made 135lm/W and 150lm/W;
5. IP65 protection grade, CRI>80Ra;
6. Beam angle are generally made 60°/90°/120° ;
7. Black and white are available.

Installation information of 100W UFO LED High Bay Light :
1. Check all the parts and accessories of UFO LED High bay light;
2. Must cut off the power supply before installation;
3. Make sure the light is fixed tightly to the surface of place for installation ;
4. Connect the power line of light with power supply, then switch on the power.
5. When the UFO highbay light is working, it must be kept vertical downward.

Applications of UFO high bay LED light :
1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum and stadium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.

Strict Tests of industrial led high bay lighting :
Before shipping, all the LED high bay lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.

Packaging of 100W UFO LED High Bay Lighting :
Our individual package maximize protecting the UFO high bay LED lights from transfer damage in transit.
1. Label on backside of each UFO LED high bay lights and your required label is available.
2. One piece UFO led high bay Light per carton.
3. This is our regular packing of the UFO led high bay light,if you need,we can also custom color packing and put your logo on it.
Shipping of UFO high bay light LED : By sea / air / express (DHL,FedEX,UPS,TNT etc.)
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Small quantity advised to be shipped by air.

Rayborn Good Service :
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.
Company Information :
Rayborn Lighting Industry Co., Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ:

Q1: What is the warranty of your high power led high bay lights?
A: We offer five years guarantee for our high power LED high bay lamps,and we will offer you based on your requirement.

Q2: What color temperature we can choose?
A: We offer LED high bay lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K

Q3: Do your led high bay lights can be used in our country?
A: Yes, Our LED high bay light has wide input voltage AC100-240V, and it can be customized too.

Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.

Q5: Do you have any MOQ limited?
A: We don't have MOQ,even only one piece LED high bay light you can buy.

Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.

Q7:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.

Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.

---
