Full Automatic Pet Bottle Blow Moulding Machine with CE (ZQ-B600-4)

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
ZQ-B600-4
Making Method of Parison
Injection Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Max.Output
5500-6000bph
Number of Cavity
4 Cavities
Max Volume
600ml
Auto Systems
Fully Automatic
Delivery Date
30 Days
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
General Packing
Specification
0.6L
Trademark
ZIQIANG
Origin
HUANGYAN, CHINA
HS Code
8477300000
Production Capacity
20 Sets/Month

Product Description

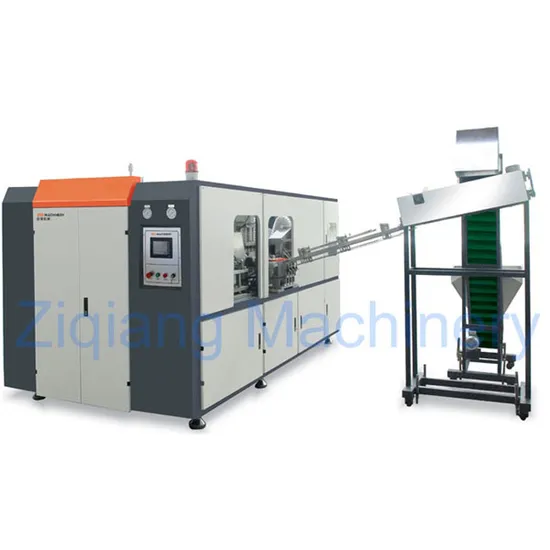

Full Automatic Pet Bottle Blow Moulding Machine ZQ-B600-4
High speed: 5500-6000 bottles/hour, Max: 0.6 L, 4 Cavity
ZQ-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the products is 0.6L and 2.0L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
Full Automatic Pet Bottle Blow Moulding Machine,advantages.
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 8000BPH(6-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
Full Automatic Pet Bottle Blow Moulding Machine,equipment information.
TYPE ITEM ZQ-B600-2 ZQ-B600-3 ZQ-B600-4 ZQ-B600-6
CONTAINER Number of cavity 2 cavities 3 cavities 4 cavities 6 cavities
Output 2400-2700 pcs/hr 3000-3300 pcs/hr 5500-6000 pcs/hr 7000-8000 pcs/hr
Max.container volume 0.6L 0.6L 0.6L 0.6L
Max.neck diameter 38mm 38mm 38mm 28-30mm
Max.container diameter 65mm 65mm 65mm 60mm
Max.container height 230mm 230mm 230mm 260mm
ELECTRICAL SYSTEM Number of lamp 21pcs 28pcs 35pcs 56pcs
Max.heating power 21kw 28kw 32kw 34kw
Installation power 24kw 28kw 32kw 48kw
Actual power consumption 14kw 18kw 22kw 24kw
AIR SYSTEM Operatating pressure 7-9kg/cm² 7-9kg/cm² 7-9kg/cm² 7-8kg/cm²
Low pressure consuming 1000Ltr/min 1200Ltr/min 1600Ltr/min 1600Ltr/min
Blowing pressure 25-35kg/cm² 25-35kg/cm² 25-35kg/cm² 25-35kg/cm²
High pressure consuming 1500-2000 Ltr/min 2000-2200 Ltr/min 2200-2500 Ltr/min 2000-2200 Ltr/min
CHILLER WATER Operating pressure 5-6 kg/cm² 5-6 kg/cm² 5-6 kg/cm² 5-6 kg/cm²
Temperatuer 10ºC 10ºC 10ºC 10ºC
Consuming 5600kcal/hr 5600kcal/hr 5600kcal/hr 8000kcal/hr
Flow rater 30Ltr/min 30Ltr/min 30Ltr/min 88Ltr/min
MACHINE Machine dimension 2.3x1.5x1.7(m) 3.5x1.95x2.1(m) 3.7x1.95x2.1(m) 5.0x2.1x2.1(m)
Machine weight 1.8ton 3.6ton 3.7ton 5.0ton

Note: The specifications are subject to change without notice for the further improvement. Note: Custom production accepted. Any client idea tried.
