China Official 37m 39m Concrete Boom Pump Truck Sy5230thbf 370c-10

Product Description

Product Description

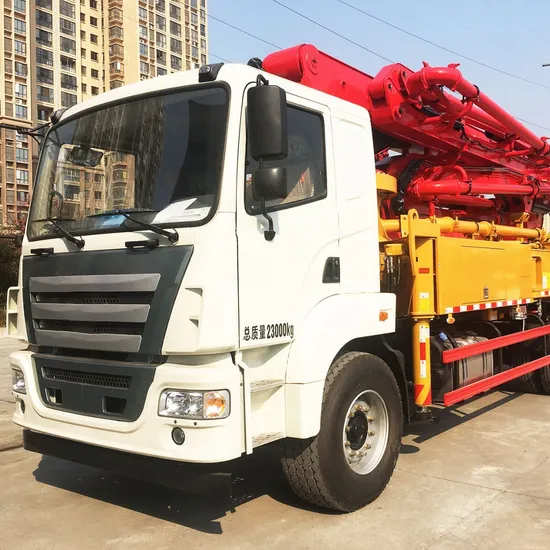

Hot sale San-y concrete pump truck mounted with 37m boom best price
Boom intelligent damping technology:The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably, reliably and safely.Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.Dual-pump and dual-loop hydraulic system: Less hydraulic impact, High efficiency, Low failure rate.Three-stage fault diagnosis: boot self-check, process self-chec and shutdown detection is adopted to realize the overall control of the product's health condition.Long life wearing parts: Reduce working cost remarkably. Continuously improve wearing part's life by using new material, new process and new designing. Product Parameters

Description	Unit	Parameter value
Maximum vertical reach	m	37.1
Maximum horizontal reach	m	32.8
Maximum depth reach	m	25.6
Minimum unfolding height	m	8
Section numbers		5
Boom type		RZ
Pipeline diameter	mm	125
Maximum theorical output	m3/h	100/60
Maximum theorical pressure on concrete	bar	80/150
Concrete cylinders (diam. × stroke)	mm	230 x 1650
Hydraulic circuit		Open
Engine power	kw	228

Detailed Photos
