US$2,000.00-8,000.00
|
1 set
(MOQ)
|
Basic Info.
Forging Forming Method
Mold Forging
Certification
CCC, CE, SGS, TUV
Transport Package
Wooden Box
Specification
1800*1200*1400mm
Production Capacity
500 Sets/Month
Product Description
Nai Production Line
1. Machine's Introduce
Nail making machine adopts plunger type structure to ensure its high working speed, low noise and low impact characteristics. It has wide uses, simple operation, and reliable working condition. The raw material can be waste scrap or new wire rod. The nail point and the nail head can be formed at one time with a high efficiency.
2. Machine's Feature
1. This nail making machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics. 2. Especially it can make excellent quality YouMao nail and other special-shaped nail, which are suitable for high-speed studs for welding machine and nail gun.
3. Machine's Parameter
| Model | SCZDJ -1C | SCZDJ -2C | SCZDJ -3C | SCZDJ -4C | SCZDJ -5.5C | SCZDJ -6.5C |
| Wire diameter of nails(mm) | 0.9-1.6 | 1.2-2.8 | 1.8-3.4 | 2.8-4.5 | 3.7-5.5 | 4.6-6.5 |
| Nail length(MM) | 9--25 | 16-50 | 30-75 | 50-100 | 80-150 | 100-200 |
| Capacity( Pieces/min) | 450 | 350 | 320 | 280 | 200 | 160 |
| Power(KW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 6.5 |
| Voltage | 380V | 380V | 380V | 380V | 380V | 380V |
| 50HZ | 50HZ | 50HZ | 50HZ | 50HZ | 50HZ |
| Weight (kg) | 800 | 1200 | 1400 | 2000 | 2500 | 5000 |
| Size (m) | 1.4*1.0*1.2 | 1.6*1.2*1.3 | 1.8*1.2*1.4 | 2.1*1.5*1.5 | 2.3*1.5*1.6 | 3.2*2.2*2.2 |

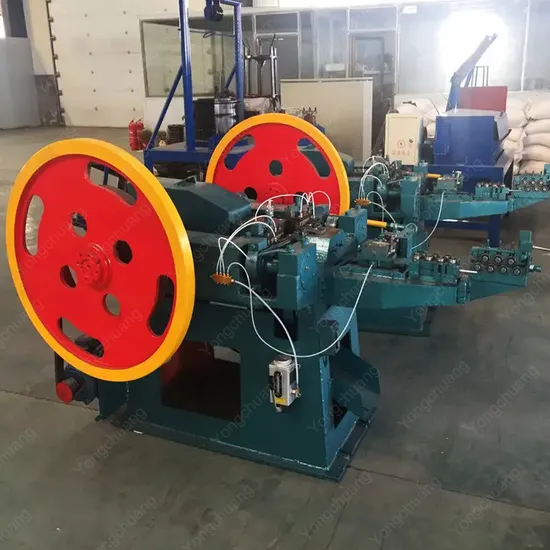

4. Machine's Picture
5.Contact Information
>>
