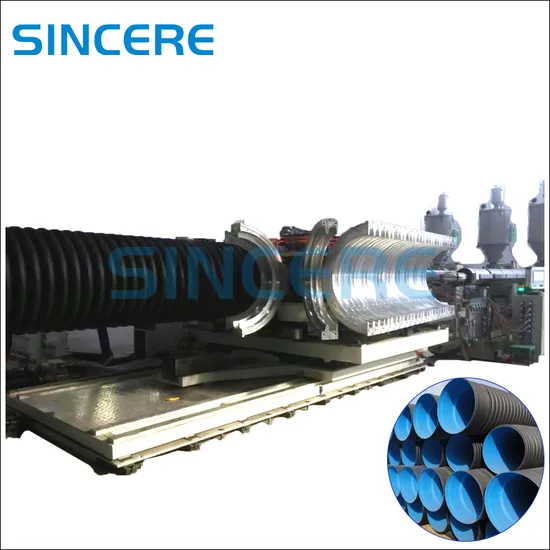

Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine

Product Description

High-Speed PE PP double wall corrugated pipe making machine/extrusion line(90-1200mm).
New Type PE PP double wall corrugated pipe making machine/extrusion line(90-1200mm).
Diameters: 90-300mm,110-600mm,200-800mm,300-1000mm,600-1200mm 1. HDPE double-walled corrugated pipe application:
HDPE / PP double wall corrugated pipe is widely used as drain pipe. The company absorbs foreign advanced technology, independent research and development of the HDPE double wall corrugated pipe production line, with a number of patented technologies. Our new high-speed PE | PP double-wall corrugated pipe production line, the use of new high-performance single-screw extruder, forming machine using horizontal structure, shuttle drive, sealed water-cooled, online flaring, high degree of automation, stable operation, large output.

2. PE / PP double wall corrugated pipe production line, can be used to produce ID90-ID1200 specifications of the single-walled, double-wall corrugated pipe (with Pipe Belling), three-wall corrugated pipe, different shapes and special requirements of special-shaped bellows.
3. Main technical parameters:

Line Model	SMSG-300	SMSG-600	SMSG-800	SMSG-1000	SMSG-1200
the diameter range (DN|ID)(mm)	90mm-300mm	110mm-600mm	200mm-800mmmm	300mm-1000mm	600mm-1200mm
Mold number (pair)	36	36	36	39	39
Max. Operating speed (m\min)	18	6.5	5.5	3.5	1.8
Total power(kw)	250	395	650	980	1350
Max. output(kg\h)	600	1350	1600	1900	2100
Dimension (mm) Length*Width*Height	27*3.5*2.8m	27*5.5*3.8m	29*6.8*4.0m	32*7.6*4.2m	35*8.5*4.5m

Single screw extruders with big L\D, and Long die-head mould and calibrator.
Single Screw Extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel>940, the surface of screw is chromeplated Feeding bush with water cooling system
Extrusion Die
Material :40Cr , the surface of die is chromeplated, anti-corrosive Two layer with aluminum cooling sleeve
High Speed Forming Machine
Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 4-6m/min working speed.It is added water cooling and fan cooling two system. Moulds Block
Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life. We could add the vacuum system for option
Spray Water Cooling Tank
It's for produce large diameter pipe,if yor only need produce 40-110mm,it's will no need.
Stacker
It's used for large diameter pipe,like 160mm-120mm.
40-110mm use the pipe winding machine.

High-speed corrugator machine, using high-qulity Aluminum module.
Water cooling tank, Automatic cutting machine, stacker.

Final Products Show & Application:

Our Service:
*We can provide customers with perfect installation and use services.*We can provide customers with satisfactory products according to their needs.*When problems arise during the use of products, we can provide appropriate solutions.*The warranty period is one year, except man-damage.*Welcome to visit our factory and looking forward to win-win cooperation.
