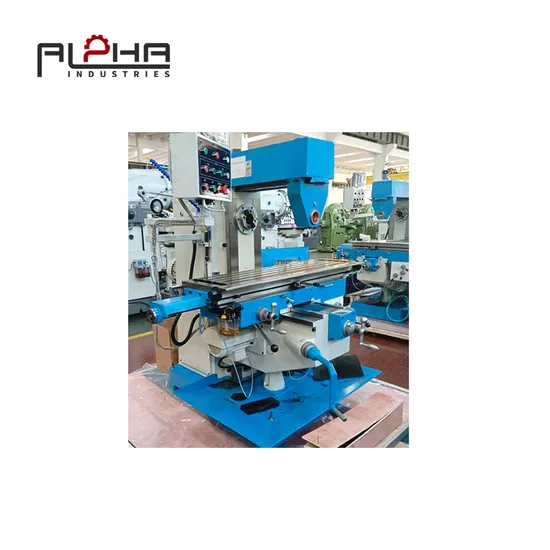

Selling at a Low Price X6032 Universal Knee-Type CNC Milling Machine

Product Description

Product Description
• A X axis travel is 800mm
• B X axis travel is 1000mm


STANDARD ACCESSORIES
• Drill chuck/Drawbar/Work lamp/Milling vice
• Coolant system/Chip tray
• X-axis mechanical power feed
• Y-axis mechanical power feed
• Toolbox&tools/Operation manual
• Quality certificate/Packinglist

OPTIONAL ACCESSORIES
• DRO/vise
• Milling collet chuck
• Rotary table
• Dividing head
• 58 pcs clamping kits
• Keyless drill chuck
Product Parameters

Model No.	Unit	X6032A	X6032B	X6036
table size	mm	1320×320	1320×320	1250×360
table travel	mm	800(750)×300	1000×300 (MANUAL)	longitudinal:600 croSs:250 vertical:420
worktable swivel angle			-	±15~±45
worktable longitudinal/cross power feed	mm/min	-	-	8steps 22~55 rapid:810
number/width/distrance ofT-slot	mm	5/14/63	5/14/63	3/18/80
spindle taper		ISO50	ISO50	7:24 ISO50
distance from spindlecenter to table surface	mm	0-400	0-400	0~420
distance from spindle center line to arm	mm	-		175
arm travel	mm		-	500
spindle speed range	rpm	58-1800	58-1800	60~1800
spindle motor pOwer	kW	4	4	4
worktable power feed motor	W	-	-	750
worktable elevating moter	kW	-	-	1.1
cOolant pump	W	-	-	90
coolant flow	L/min	-	-	25
overall dimension	mm	2070×1900×1850	2070×1900×1850	1880×1700×1830
G.W.	kg	2200	2300	2200

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
