150ton Rubber Ring Vulcanizer Rubber Seals Vulcanizer Rubber Rings Vulcanizer

US$11,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
150T
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Pressure
150ton
Plate
600*600
Heating Type
Electric
Voltage
Customized
Transport Package
Film/Wood Packing
Specification
150T 600*600
Trademark
Honghesheng
Origin
China
HS Code
8477800000

Product Description

150Ton Rubber Ring Vulcanizer Rubber Seals Press Machine Rubber Gasket Heating Vulcanizer
Rubber vulcanizing press applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. ) plate vulcanizing and compression molding.
This machine can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc.
Machine Features
1. In/Out molds are treated with nitrogen and grinded. These processes achieve high-precision parallelism of working benches. 2. High-precision structural steel design, easy but speedy, convenient to fit various molds. Adjusting, repairing, or maintaining are very easy and accurate. 3. Slow speed of alignment adjusting is provided to make the molds calibration more safe and more accurate to suit various molding conditions.

Technical Parameter
Model XLB-50 XLB-100 XLB-200 XLB-300 XLB-350 XLB-400 XLB-500
Mold closing force 50T 100T 200T 300T 350T 400T 500T
System pressure 21Mpa 21Mpa 21Mpa 21Mpa 21Mpa 21Mpa 21Mpa
Clamping stroke 280mm 280mm 300mm 300mm 300mm 300mm 300mm
Rapid clamping speed 60mm/s 60mm/s 60mm/s 60mm/s 60mm/s 60mm/s 60mm/s
Plate size 350*350
400*400
450*450
500*500
510*540
600*550
700*650 700*700 900*800 700*700
800*800
950*800
Daylight 350 350 350 350 350 350 350
Max temperature 250 250 250 250 250 250 250
Motor 5.5 5.5 7.5 11 11 13 13
Heating power 9.6 9.6 18.6 20.6 20.6 27.8 27.8
Oil capacity 160L 270L 320L 400L 400l 500L 600L
We can design kinds of non-standard press according to your requirement.
Please tell us your required total pressure, heating platen size, working layer, daylight distance and piston stroke.

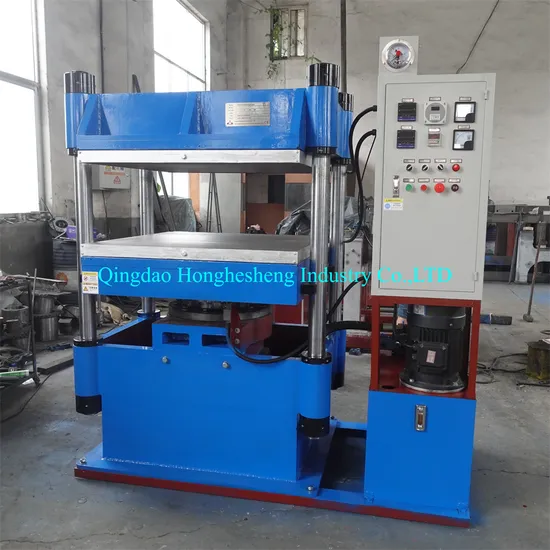

Machine Pictures
Machine Delivery
Related Machines
Our factory is professional in manufacturing different types of plate vulcanizer,also can manufacture rubber cutter,open mixing machine,and kneading machine,etc. Welcome to contact me for more machine details~~
