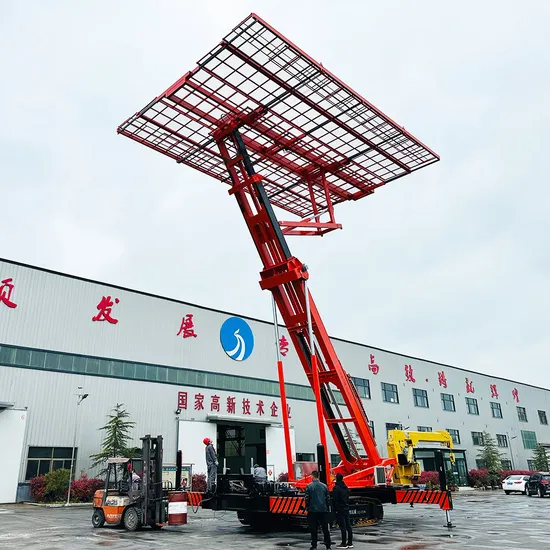

39m Reverse Ceiling Working Platform High-Altitude Tile Press Crawler Rail Walking Remote Control Operation

Product Description

Product Description
The special equipment for steel structure anti-ceiling is improved on the basis of the original high-altitude tile pressing machine, and the small platform required by the original tile pressing machine is improved into a large platform, which can be folded and folded for convenient storage when there is no need for high-altitude operation. After the platform is opened, 4-5 people can carry out high-altitude work at the same time, and the required materials can also be lifted to the roof.

Sheet material for roof and wall panels	Color steel plate, galvanized plate, aluminized manganese plate
Suitable for molding press	All Kok Chi series and Kok Chi, fritillary plate, roof plate forming machine, motor + reducer drive, hydraulic shear type
Add-on crane function (optional)	Hydraulic drive, can lift 8T
Required voltage and power	380V, 22KW
Thickness of sheet material for roof and wall panels	0.3 mm - 1.0 mm
Specifications after installation of tile press: length × width × height	12.6 m x 3 m x 3.4 m

Equipment features
1.with a large platform, in addition to the anti-ceiling operation can be realized, but also to achieve high-altitude tile.
2.It can meet the air anti-ceiling operation of 4-5 people at the same time, and improve the construction efficiency.
3.the equipment walking device using track chassis can adapt to a variety of road surface.
4.the lifting height of the equipment 17-32 meters (highly customized), can meet the various heights of the plant construction.
5.the whole equipment adopts remote control operation, the operation is more simple and convenient.
6.the large platform of the device can be folded, which can make the storage more convenient.
7.The equipment can be equipped with lifting hook device, which can simultaneously meet the three operating needs of the working platform, the upper tile and the crane.
Company Profile
The crane and reverse ceiling are optional and cost extra
Henan Huaying Machinery Equipment Co., Ltd. has a variety of models to choose from. Lifting 17 meters bearing 8 tons of high-altitude shingle equipment, lifting 18.5 meters bearing 8 tons of high-altitude shingle equipment, lifting 21 meters bearing 8 tons of high-altitude shingle equipment, lifting 18.5 meters bearing 11 tons of high-altitude shingle equipment, lifting 23 meters bearing 11 tons of high-altitude shingle equipment, etc., Huaying Machinery in the field of high-altitude upper tile equipment technology constantly design innovation, research and development improvement to meet the production needs of customers; A variety of equipment produced by the company has obtained national patents.
Our aim is: excellent product quality, perfect service system, good company reputation, warm service attitude.
"Business letter based, sincere ambition to go the world" for the purpose, in the spirit of mutual benefit and major customers to establish long-term friendly partnership. We are willing to excellent product quality, timely delivery, perfect after-sales service to meet customer needs, and friends from all walks of life to create brilliant!
Recommend For You

Crawler type high altitude tile press Truck-mounted high altitude tile press Crawler spider hanger
Exhibition dynamics


FAQ
Q1: High altitude tile press working noise?
A1:Lack of lubrication in key parts, resulting in serious friction between parts resulting in abnormal sound; Solution: lubricate the key parts.
Q2:High-altitude tile machine can not lift up?
A2:Hydraulic system damage, or due to hydraulic oil problems; Solution: Find professional engineers to solve.
Q3:The phenomenon of sinking of the high-altitude tile press?
A3:Due to the loss of liquid pressure, or the leakage of hydraulic valves and seals; Solution: Replace the damaged parts and replace the hydraulic valves and seals.

---
