Different Type of Excavator Construction Equipment Mini Digger Excavators Small

Product Description

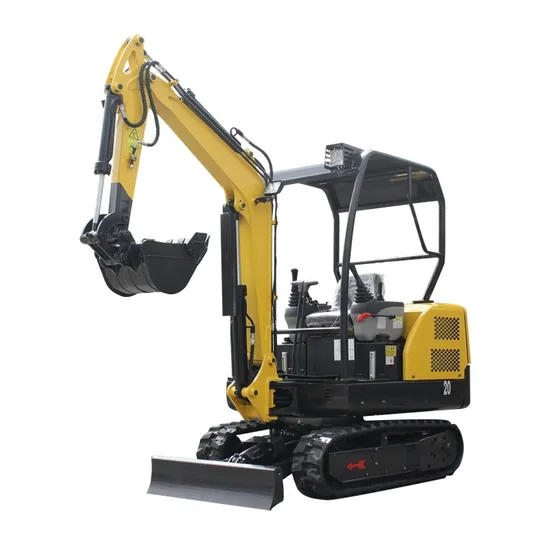

Different type of excavator construction equipment mini digger excavators small
Features 1-Kubota, 14 KW
2-Swing boom
3-EATON brand slewing motor
4-EATON brand driving motor
5-Closed cabin
6-Hydraulic pilot servo operation system Product Parameters

Main Specifications			Overall Dimensions
Operating Weight	1800 kg		Overall Length*Width*Height	3725*990*2300 mm
Bucket Capacity	0.06 m³		Track Grounding Length	1250 mm
Bucket Width	450 mm		Track Shoe Width	230 mm
Boom Length	1823 mm		Track Gauge	740 mm
Arm Length	1130 mm		Min Ground Clerance	160 mm
Performance			Min Front Swing Radius	1120 mm
Swing Speed	10 rpm		Tail Swing Radius	1080 mm
Travel Speed	0-2.2Km/h		Dozer Blade Width	990 mm
Grade Ability	25 °		Operating Range
Ground Pressure	34 Kpa		Max Digging Radius	3920 mm
Bucket Digging Force	15.2 KN		Max Digging Depth	2140 mm
Arm Digging Force	8.7 KN		Max Digging Height	3330 mm
Max Traction Force	12.5 KN		Max Dumping Height	2440 mm
Engine			Boom Offset (Left/Right)	240/460 mm
Model	Kubota		Boom Swing Angle L/R	73/47 °
Rated Power	14 kw/2200 rpm		Dozer Blade Size Width*Height	990*210 mm
Max Torque	107.8 N.m/rpm		Dozer Blade Lift/Digging	228/218 mm
Displacement	1.642 L		Pump type	gear pump
Cylinders	3		Discharge	227L/min
Bore and Stroke	88*90 mm/85*90 mm		Working cylinder×number	110mm×2
Cooling Type	Water

Detailed Photos
Attachment
Kinds of Optional equipments
Narrow bucket, quick hitch, levelling bucket rake, grabber, auger, hydraulic hammer, trailer, ripper etc.are optional attachments with good quality and cheap price. supply cheap price good quality 2 ton long boom mini excavator
Workshop
Packaging & Shipping
Company Profile
Shandong Ucarry Machinery Co., Ltd. is a professional manufacturer of construction machinery and main parts. The company has professional technical person, precise production equipments, super production ability for customers to create first-class construction machinery and equipments.All of our products can be OEM products.

---
