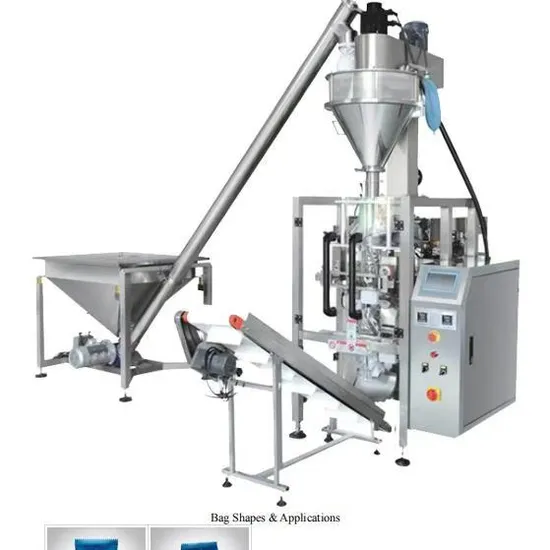

Automatic Milk Powder Coffee Lactoferrin White Pepper Chili Spice Powder Packaging Machine

US$6,999.00-8,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
AH-DBF450
Certification
CE
Power Source
Electric
Process
Thermal Processing
Automatic Grade
Automatic
Application
Candy, Chocolate, Popcorn, Milk Powder Coffee Lactoferrin White Pepper Chili
Customized
Customized
The Maximum Bag Size(L*W)
280*210mm
Packing Maximum Speed
2700bags/H
Package Measurement
50-2000g
Net Weight
370kg
Dimension(mm) L/W/H
1320*1170*1870mm(L*W*H)
Transport Package
Wooden Case
Specification
SGS, CE
Trademark
Onfocus
Origin
China
HS Code
8422400000
Production Capacity
30set/Month

Packaging & Delivery

Package Size
1320.00cm * 1170.00cm * 1600.00cm
Package Gross Weight
370.000kg

Product Description

AH-DB Series automatic powder products quantitative bag packaging equipment
Model AH-DBF350 AH-DBF450 AH-DBF620 AH-DBF820
Capacity(pc/min. ) 2700bags/h 2700bags/h 1800bags/h 1800bags/h
Packing Capacity 20-1000g 50-2000g 50-5000g 500-8000g
Power(kw/v) 2600W 2600W 2600W 2600W
Size of Bag(L) 30-280mm 30-280mm 50-400mm 50-400mm
Size of Bag(W) 40-160mm 40-210mm 100-300mm 100-400mm
Dimension(MM) L/W/H 1320x1070x1600mm 1320*1170*1600mm 1450x1280x1900mm 1550x1500x2320mm
Weight(kg) 355kgs 370kgs 430kgs 500kgs

FEATURE:
1). Chinese and English touch screen display, intuitive and simple operation.
2). The PLC computer control system is more stable in operation and can adjust any parameters without stopping the machine.
3).Fully automatic color code positioning function replaces manual moving photoelectric eyes
4). Using a servo motor to pull and touch, for more accurate positioning.
5).Independent temperature control system, with an accuracy of ± 2 ºC.
6).The horizontal and vertical sealing temperatures are independently controlled, making them suitable for various packaging materials such as composite films and PE films.
7). Bag making, sealing, packaging, and printing date are all completed in one go.
8). The working environment is clean and low in noise.
Particulars:
² It has pneumatic transmission system with a reliable operation being ensured. A computer with an easy operation and adjustment being provided controls it, the performance is stable, and the quality is reliable.
² Staples adjusting of the packaging speed.
² Adopting proper bag length controlling technology, the bag length can be adjustable stepless, precise length, convenient adjustment.
² Solving the problems of draw bench and drip to ensure the tight sealing, improving the quality of the packages.
² Intelligent temperature controller, constant sealing temperature ensures the sealing quality.
² Realizing three side sealing, four side sealing and making flatness bags and bags without changing parts.
² Safe and credible photoelectric detecting, giving complete trademark pattern.
² Filling rang is step less adjustable within the certain scope.
² Lot number being automatically printed on the bag, and can leave a little gap for tearing and convenient use.
² The machine is made of stainless steel sanitation with good appearance, suitable to food, medicine and chemical industry.
² Thanks for your choice to our machine; Your satisfaction is our permanent aim. We are not the best, but trying to be the best. Please read this instruction before using.
Our Company
Payment
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
