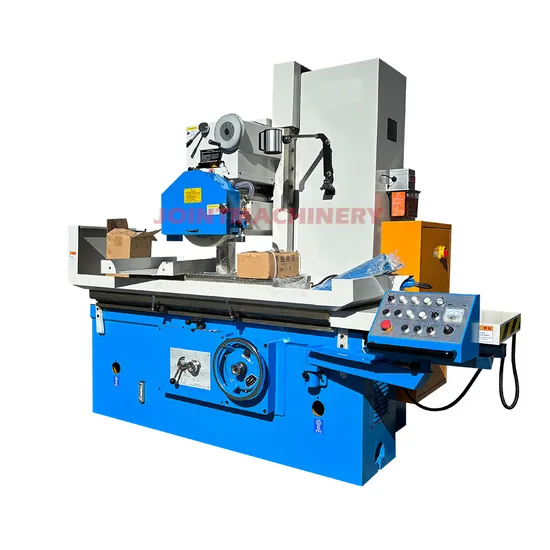

Precision Metal Hydraulic Surface Grinding Machine Rectangular Surface Grinding Machine

Product Description

1. Elevate your grinding capabilities to new heights with the Advanced Precision Metal Hydraulic Surface Grinding Machine. Specially engineered to enhance your work surface, this state-of-the-art machine effortlessly accommodates larger workpieces, presenting unmatched versatility and remarkable efficiency in all your grinding operations.
2. Discover the awe-inspiring movable grinding head structure, brilliantly crafted to integrate the front and rear sections into a singular, seamless design. This masterful fusion delivers exceptional rigidity and stability, ensuring each operation is executed with unparalleled precision and steadfast reliability.
3. Experience the transformative power of hydraulically driven movements, with the worktable's longitudinal and the grinding head's lateral movements promising stepless speed regulation. Customize the lateral feeding to your specific requirements, choosing between manual or fully automated options for ultimate flexibility and meticulous precision.
4. Delight in the convenience of the grinder's vertical feed, deftly operated manually yet ingeniously equipped with a quick lifting mechanism. This advancement significantly reduces labor intensity, heightening user comfort while maximizing operational efficiency for a seamless grinding experience.
5. Behold the engineering marvel of the grinding head, showcasing a tapered sliding bearing and a spindle that guarantees remarkable rigidity and precision. Supported by a robust 7.5kw motor, this machine delivers powerful and efficient grinding operations, meeting even the most exacting demands with ease.
6. Embrace the elegantly user-friendly design of this machine tool, characterized by its smooth operation and whisper-quiet noise levels. Achieve superior grinding efficiency and outstanding performance, establishing this machine as the go-to choice for precision tasks that demand perfection.
1. Precision Grinding Head
Transform your operations with this manual grinding head, meticulously upgraded with a rapid lifting mechanism and a formidable built-in motor. Expertly engineered for unmatched rigidity and precision, it ensures your grinding results consistently achieve unparalleled excellence.
2. Efficient Electromagnetic Chuck
Enhance your productivity with the intuitive electromagnetic chuck, crafted for seamless operation. Designed to function continuously for over 20 hours, it is the perfect ally for high-demand tasks, optimizing both time management and productivity with exceptional ease.
3. Premium Metal Hand Wheel
Achieve precision like never before with the high-precision metal feed handwheel, offering effortless control and an astounding accuracy level of 0.002MM. Its superior grinding model redefines precision engineering, ensuring the pinnacle of performance with each use.
4. Advanced Double V Guide Rail
Delight in the precision of the advanced double V guide rail, expertly paired with a single V flat guide rail laterally and bolstered by hydraulic drive. This exceptional combination ensures unparalleled precision and reliability, elevating the machine's consistent performance to new heights.
5. Durable Resin Sand Cast Iron Body
Witness the epitome of stability and strength with our expertly crafted resin sand cast iron body. Enhanced through meticulous artificial aging treatment, these castings assure dimensional accuracy, delivering optimized finishing and precision even in the most demanding applications.
Precision Metal Hydraulic Surface Grinding Machine Rectangular Surface Grinding Machine

Model		Unit	M7163x12	M7163x16	M7163x20
Worktable size		mm	630*1250	630*1600	630*2000
Maximum grinding size		mm	630*1250*600	630*1600*600	630*2000*600
Longitudinal movement of worktable (hydraulic)		mm	200-1350	200-1700	200-2100
Worktable speed (stepless speed)		m/min	5-25	5-25	5-25
No. of T-slots on worktable		pcs	3	3	3
Width		mm	18	18	18
Worktable load (including electronic chuck)		kg	980	1200	2000
Electronic chuck size		mm	630*1250	630*800 (2pcs)	630*1000 (2pcs)
Grinding head transverse feed (stepless speed)
Continuous		mm/min	0.8-3	0.8-3	0.8-3
Intermittent		mm/pcs	5-25	5-25	5-25
Vertical handwheel minimum scale		mm	0.01	0.01	0.01
Vertical feed of grinding head per hand wheel rotation		mm	0.5	0.5	0.5
Grinding wheel size		mm	400*50*203	400*40*203	400*50*203
Total capacity of electrical equipment		kva	15	16	20
Grinding head motor
Power		kw	9	9	9
Speed		r/min	1440	1440	1440
Parallelism of machined surface to base surface		mm	300:0.008	300:0.008	300:0.008
Workpiece surface roughness		μm	Ra0.63	Ra0.63	Ra0.63
Machine tool dimensions		mm	3800*2100*2500	4700*2100*2500	5600*2100*2500
Packing size		mm	4010*2300*3000	4600*2300*3000	5200*2300*3000
Net weight		kg	5500	6500	7500

Shenzhen Joint Machinery Co., Ltd. proudly stands as a beacon of excellence in the creation and exportation of unrivaled CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. Driven by a steadfast commitment to quality and impeccable service, we pledge nothing short of the best for our esteemed global clientele. Through rigorous quality control and relentless innovation, our products not only meet but consistently surpass the highest industry standards. Our machinery, infused with cutting-edge technologies from Taiwan and Germany, is crafted with state-of-the-art production equipment, ensuring exceptional quality and dependability. Celebrated for their extraordinary precision, stability, and reliability, our machines masterfully tackle diverse, intricate machining challenges. Our products, renowned for their superior performance, are sought after worldwide, earning the admiration of a diverse customer base. Our expansive market footprint extends across Asia, Europe, South America, North America, and beyond. We've cultivated enduring partnerships with clients globally, co-creating immense value and success across various industries.

---
