Product Details
Product Description
Product Description

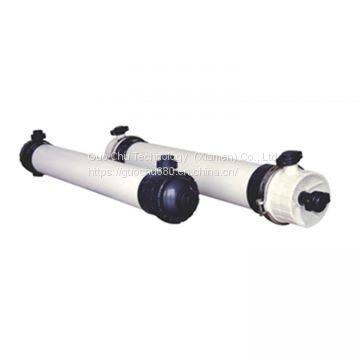

Hollow ultrafiltration membrane is a hollow fiber by the ultrafiltration membrane, which is ultrafiltration technology in the most mature and advanced technology. Hollow fiber outer diameter is 0.5 to 2.0 mm, while inner diameter is 0.3 to 1.4 mm. Hollow fiber tube wall covered with microporous. The pore size is expressed in terms of the molecular weight of the substance that can be retained, and the molecular weight can be several thousand to several hundred thousand. Raw water in the hollow fiber outside or cavity pressure flow, respectively, constitute the external pressure and internal pressure. Ultrafiltration is a dynamic filtration process, the retained material can be excluded with the concentration of small, not to block the membrane surface, long-term continuous operation.
Characteristic:
l excellent tensile and compressive properties
l strong anti pollution ability
l High throughput
l strong permeability
l Strong stability
l PVDF materials
l oxidation resistance
l pollution resistance
l simple structure
l easy operation
l high separation efficiency
l Low energy consumption
l low filtration resistance
l small transmembrane pressure difference
Type
| SUF-1809B
| SUF-2309B
| SUF-1808B
|
Material
| PVDF
|
Membrane area(m2)
| 50
| 72
| 50
|
Pore size(um)
| 0.1
|
Inner /external diameter(mm)
| 0.7/1.3
|
Filtering method
| external pressure
|
Maximum influent pressure(Mpa)
| 0.6
|
Maximum operating pressure(Mpa)
| 0.3
|
Temperature(℃)
| 5~45
|
Operating PH
| 2~11
|
Cleaning temperature
| 1~12
|
Water output(m³/hr)
| 2~6
| 4~9
| 2~5
|
Shell material
| UPVC
|
Size（mm）
| 1860*225Φ
| 2360*225Φ
| 1790*200Φ
|
Interface size
| DN50
|
Wet weight(KG)
| 75
| 90
| 65
|
Dry weight(KG)
| 35
| 42
| 33
|
