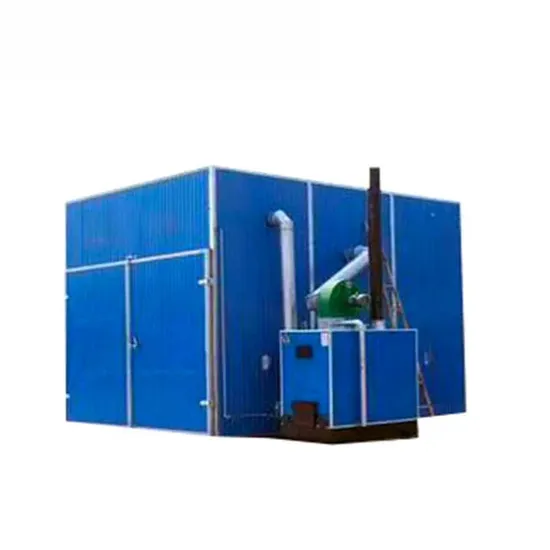

30 cubic meter wood drying box configuration table (Forklift feeding) (Special for fuel oil) | |||||
| Body (ZCM-30) | |||||
| No. | Name | Description: Oil fired steam hot air boiler heating. | Quant ity | ||
| 1 | Box | Drying products: suitable for all kinds of wood drying and drying, as well as wood | 1 | ||
| sterilization, insecticide and wood heat | |||||
| treatment. | |||||
| Box headroom length: 6500mm, width: 4500mm, height: 4000mm. | |||||
| Material of drying box: the inner wall is all | |||||
| aluminum for anti-corrosion and high | |||||
| temperature resistance. The outer wall is color steel plate, and the middle insulation | |||||
| fiber cotton insulation. | |||||
| Heat Source System | |||||
| 1 | Boiler | 300,000 kcal: oil-fired steam hot air drying | 1 | ||
| boiler. | |||||
| Material is: special steel plate welded, 300000 kcal wood special hot air drying | |||||
| furnace (forced type, furnace outlet | |||||
| temperature 180°-200°, the main fuel is: | |||||
| fuel. | |||||
| Thermal insulation boiler material is: all steel boiler special steel plate). | |||||
| Furnace body steel plate wall | |||||
| thickness of 8cm, seamless steel pipe | |||||
| wall thickness of 10mm. | |||||
| 2 | Steam generator | Material: special Thickness: 8mm. | steel plate | welded. | 1 set |
| 3 | Chimney | Material: special steel plate welded. φ240mm, length: 6700mm, each section | 2 sectio | ||
| 3350mm. Diameter 280mm, wall thickness 2mm. | ns | ||
| 4 | Automatic exhaust steam raft | Material: special cast iron. | 1 |
| 5 | Glass tube | φ20mm, length: 450mm. | 2 |
| 6 | Add tank | 8.0mm thickness with 200L water capacity. Material: special steel plate welded. | A set |
| 7 | Faucet | Material: cast steel type. | 1 |
| 8 | Steam valve | Material: Cast iron type. | 1 |
| 9 10 | Watering bucket Oil burner | Material: steel plate type. Special for fuel. | 1 1 set |
| Pipeline system | |||
| 1 | Air intake duct | Φ318mm. Material: all steel welded. | 1 set |
| 2 | Return air duct | Φ318mm. Material: all steel welded. | 1 set |
| 3 | Recycle one | Φ318mm. Material: all steel welded. | 1 set |
| 4 | Bend | Φ318mm. Material: all steel welded. | 4 |
| 5 | Tuyere iron plate | Φ318mm. Material: all steel welded. | 1 set |
| 6 | Intake duct law blue | Φ318mm. Material: all steel welded. | 1 set |
| 7 | Return air duct French blue | Φ318mm. Material: all steel welded. | 1 set |
| 8 | Heat dissipation pipe in the box | Φ318mm. Material: all steel welded. | 1 set |
| Fan system | |||
| 1 | High temperatur e main fan | Power 4.00KW. Material: all carbon steel. Zibo high quality volute fan. | 1 set |
| 2 | High temperatur e and high humidity axial flow fan | Power 1.50KW. Material: all aluminum. Zibo high quality axial fan diameter 850 mm. | 3 sets |
| Prosecution system | |||
| 1 | Air outlet temperatur e gauge | Material: stainless steel, temperature at 300C. | 1 |
| 2 | Thermocou ple | Stainless steel. | 1 |
| 3 | Temperatur e gauge | Digital display. | 1 |
| 4 | Electric control cabinet | Full automatic control. Chint parts inside. The best domestic electrical parts. | A set |
| Tide drainage system | |||
| 1 | Drainage system | Material: All steel welded, thickness 2mm. φ240mm. | 1 set |
| 2 | Wire rope | Material: oil rope. | 1 set |
| 3 | Cock | The material is: full copper. | A set |
| 4 | Drain hole retractor | Material: steel, thickness 2mm. | 1 set |
| 5 | Drain hole support rod | Material: steel, thickness 2mm. | 1 set |
| 6 | Deflector | Material: All aluminum. | 1 set |
| 7 | Windshield | Material: All aluminum. | 1 set |
| 8 | Deflector skeleton | Material: All steel. | 1 set |
| 9 | Windshield skeleton | Material: All steel. | 1 set |
| Insulated door | |||
| 1 | Insulated door | Material of drying box: the inner wall is all aluminum for corrosion resistance and high temperature resistance. The outer wall is color steel plate, and the middle insulation | 1 set |
