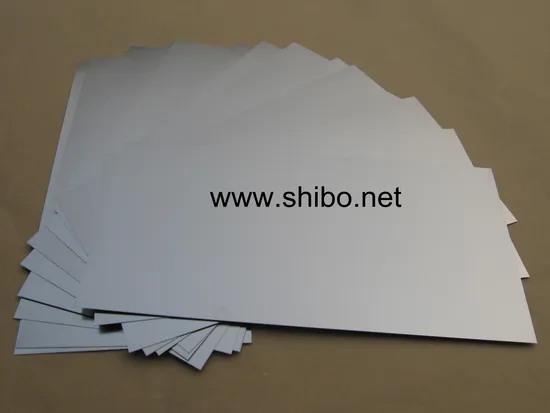

Polished 99.95% Tungsten Sheet for Heat Shield

Product Description

Tungsten plate mainly used in manufacturing electric light source and electric vacuum parts, boats,heatshield and heat bodies in high temperature furnace , Medical diagnosis and treatment equipment ;as a means of high temperature heating elementand and high temperature structure parts;to product tungsten spiral for vacuum evaporation and making tungsten sputtering target.

1. Grade:W1

2. Purity :W1 > =99.95%

3. Characteristic:
Melting Point: 3410 Degrees Celsius
Boiling Point: 5927 Degrees Celsius
Density: 19.3g/m3
4. Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion, High quality, workability

5.Dimensions and tolerances Unit:mm

Tungsten SHEET

thickness [mm] tol [mm] width [mm] tol [mm] length [mm] tol [mm] quality flatness in % 0.100 +/- 0.030 200.0 +/- 0.47 1000 +5/-0 cold rolled, bright 15 0.200 +/- 0.035 200.0 +/- 0.47 1000 +5/-0 cold rolled, bright 15 0.300 +/- 0.035 200.0 +/- 0.70 1000 +5/-0 cold rolled, bright 15 0.400 +/- 0.050 200.0 +/- 0.70 1000 +5/-0 cold rolled, pickled 15 0.500 +/- 0.060 200.0 +/- 1.00 1000 +5/-0 cold rolled, pickled 15 0.500 +/- 0.110 500.0 +/- 1.20 1000 +5/-0 hot rolled, pickled 20 1.000 +/- 0.200 500.0 +/- 1.20 1000 +5/-0 hot rolled, pickled 20 1.500 +/- 0.250 500.0 +/- 1.70 1000 +5/-0 hot rolled, pickled 20 2.000 +/- 0.250 500.0 +/- 1.70 1000 +5/-0 hot rolled, pickled 25 3.000 +/- 0.300 300.0 +/- 1.70 800 +5/-0 hot rolled, pickled 25 4.000 +/- 0.200 200.0 +/- 1.70 600 +5/-0 hot rolled, pickled 25 5.000 +/- 0.200 200.0 +/- 1.70 550 +5/-0 hot rolled, pickled 25

6. Application
1).for producing tungsten targets
2).for producing ion implantation parts
3).for rolling tungsten foil and punching tungsten discs
4).for producing electric light source parts and electric vacuum components
5).for producing heating elements and refractors in high temperature furnaces
6).for producing W-boats, and heating units in high temperature furnaces

Standard and safe Packing
Shipment Methods: Sea or Air transportation, train or express
Payment Methods:
1) L/C ; 2) T/T ; 3) Paypal ; 4) Money Gram ; 5) Western Union
Why choose Shibo?
1. More than 20 years' manufacturing experience, leading factory
2. Reasonable factory direct wholesale prices
3. Steady and top quality, timely delivery, reliable after-sale service
Guaranteed purity:
We produce tungsten products all by ourselves - from the metal oxide right through to the finished products. As our input material, we only use the purest tungsten oxide. This ensures that you can benefit from a very high level of material purity.

---
