Product Description

PET Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.

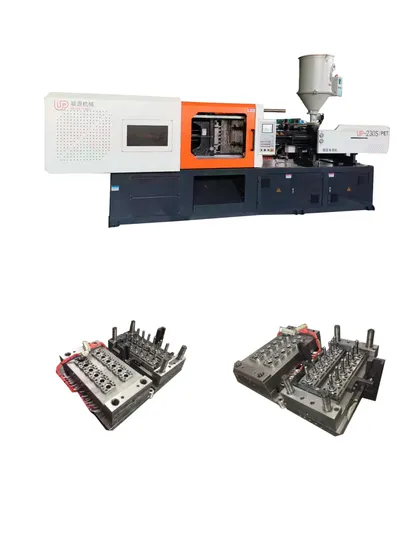

230T PET Injection Molding Machine
Our PET preform injection molding machine is designed with a special plasticizing module featuring a length-diameter ratio of 22:1, optimized power, and injection parameters to enhance plasticizing output and quality, reducing defective rates.
Large injection weight
Powerful power source configuration for reduced cycle time
Plasticizing action can be synchronized with mold closing actions, enabling pre-molding while opening the mold to shorten the overall molding cycle
Experience efficient and high-quality PET preform injection molding with our advanced machine.

Technical Parameters	Model UP-230T PET
Injection Unit	A	B	C
Screw diameter (mm)	50	55	60
Shot Volume (cm3)	461	558	664
Injection weight (g)	553	669	796
injection pressure (Mpa)	169	142	121
Screw speed (rmp)	155
Clamping Unit
Clamping force (KN)	2300
Open stroke (mm)	475
Max Mold height (mm)	550
Min Mold height (mm)	220
Space between tie bars(mm)	530*530
Ejector force (KN)	70
Ejector stroke (mm)	135
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	22(21.2)
Heating power (KW)	14.2
Machine dimension (M)	5.8*1.55*2.15
Machine weight (T)	6.3
Oiltank cubage (L)	350

---
