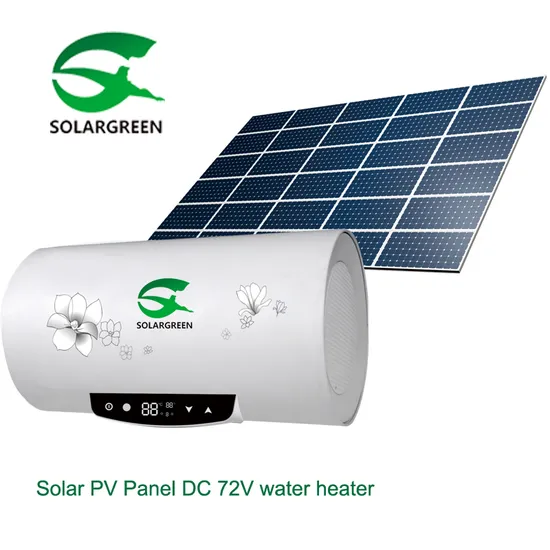

10 Years Warranty New Technology Solar PV DC Water Heater

Product Description

10 years warranty New Technology Solar PV DC Water Heater
Feature: 1)The 1st Solar PV DC water heater in the world
2)Combination with highest quality electrical water heater+Solar PV panel
3)DC72V+AC220V sametime
AC power just a back up,even in winter nearly no need electricity
4)2 grade higher than the best water heater standard on Energy consumption and heating insulation
each 24 hours temperature loss less than 8degree!
5) 10 years warranty
6)Nearly no need grid power in winter only with 400w-600w solar panel for different area.
7)Effiency Data : 2 level better than the best top standard .
24H Intrinsic energy consumption coefficient only 0.46. Intrinsic energy consumption coefficient Level 1<=0.6;Level 2<=0.7;Level3<=0.8;Level 4<=0.9;Level5<=1;
Hotwater output rate is as high as 94.8%; the highest level 1,is only more than 70%.level 2 should be more than 60%.
Power consumption is only half of traditional electrical waterheater if only use grid power .
no need to worry water leackage any more !
no need to waste minutes of cold water before hot water!
Constant water temperature for more confort!
Easy installation/Safe usage!
Meeting your requirement from 100L,125L,150L,200L,300L
Specifications:

Specifications of solar water heater
Type	GF-40L-D100L	GF-50L-D125L	GF-60L-D150L	GF-80L-D200L	GF-100L-D300L
(L)The tank capacity(L)	40	50	60	80	100
The tank material	304SUS	304SUS	304SUS	304SUS	304SUS
(L)Equivalent capacity L	100	125	150	200	300
(VDC)PV peak voltage	DC 72V	DC 72V	DC 72V	DC 72V	DC 72V
(VDC)PV open circuit voltage	84	84	84	84	84
(W)PV peak power	200+200 w Or above	250+250 w Or above	275+275w Or above	300W*3	300w*4
Grid Power V	220	220	220	220	220
(Hz)Power frequency	50	50	50	50	50
Rated power consumption W/H	2500	2500	2500	2500	2500
(MPa)Nominal pressure	0.8	0.8	0.8	0.8	0.8
(ºC)Temperature range	30--85	30--85	30--85	30--85	30--85
(mm)The extermal diameter	410	410	410
(mm)Outer barrel length(mm)	760	820	900
(mm)Insulation thickness (mm)	55	55	55	55	55
(Kg/m³)Insulation density	34	34	34	34	34
Insulation material	Environmentally friendly polyurethane	Environmentally friendly polyurethane	Environmentally friendly polyurethane	Environmentally friendly polyurethane	Environmentally friendly polyurethane
(Kg)Total weight(Kg)
24hε)Natural energy consumption coefficient (ε)	0.46	0.46	0.46	0.46	0.46
Energy consumption level	Super grade 1	Super grade 1	Super grade 1	Super grade 1	Super grade 1
(μ)Hot water output(μ)	94.8%Super grade 1	94.80%	94.80%	94.80%	94.80%
Energy consumption level	Super grade 1	Super grade 1	Super grade 1	Super grade 1	Super grade 1
energy efficiency level of whole machine	Super grade 1	Super grade 1	Super grade 1	Super grade 1	Super grade 1
(mm)Out packing size (mm)
(Kg)Gloss(Kg)
model number D:means equivalent to.for example,GF-40L-D100L means equal 100L water output.
solar panel rated voltage need to be 72V, open cercuit voltage need to be 84V,if not this one ,need to inform us before production

Products packing
Production line:
Showroom
Product diagram:
Why choose us ?
Our Services
Reply you enquiry in 24Hrs
Feedback of complaint in 24Hrs
OEM/ODM are welcomed
Exclusive agents in local country are welcomed
1-2 years Warranty according to different products
About us :
Supergreen Tech Co.,Ltd, Professional manufacturer for solar products such as Solar Pv water heater,Solar lights, Solar air conditioner, Solar refrigertors, Solar pest control lamp and so on.
With CE Certified and several patent technology, making sure that we can provide you the best user friendly products!

---
