Polyester Staple Fiber (PSF) Production Line for Producing Pet Fiber

Product Description

Polyester staple fiber (PSF) production line can produce both solid and hollow conjugated recycling staple fibre production lines and capable in technique supporting. We are dedicated to meet the needs of our customers and develop and design various specific products according to the requirements of customers and provide superior services such as workshop design, staff training, equipment installation and adjustment.
Polyester Staple Fiber Production Line can be used the recycled PET flakes and virgin chips to produce the polyester staple fiber; It is a flexible production line. It can produce solid polyester staple fiber (PSF) and 3-dimensional conjugated fiber (HCF) (including dope dyed fiber), the specification from 1.5D to 20D. The capacity can be from 3000MT/year to 30, 000MT/year.
* Process flow of the production line as below:
1. Spinning Line:

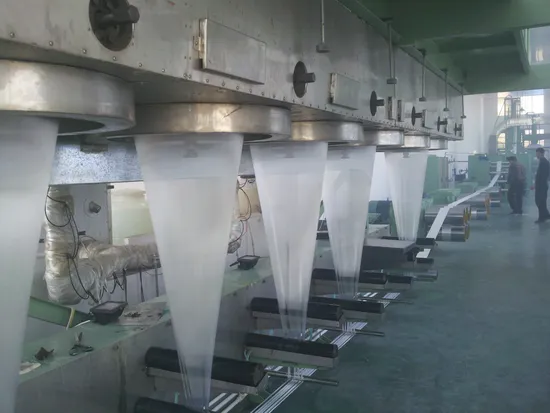

Vacuum Dryer -> Hopper -> Screw Extruder -> Filter -> Spin Beam (Meter Pump System, Spin Pack, Spinneret) -> Quenching Unit -> Interfloor Duct -> Draw-off Wall -> Capstan Roller -> Sunflower Gearing unit -> fiber can traverse system
2. Draw Line:
If 2-Dimensional Hollow Fiber:
Can Creel -> Inlet Thread Guide -> Tow Guide Stand -> Dipping Bath -> 1st Draw Stand -> Draw Bath -> 2ND Draw Stand -> Draw Steam Chest -> 3rd Draw Stand -> Tow Stacker -> Crimper Steam Box -> Crimper -> Tow Conveyer -> Relaxer -> Tow Tension Stand -> Cutter -> Chain Plate Conveyor -> Baling Press
3. If 3-Dimensional Hollow Fiber:
Can Creel -> Inlet Thread Guide -> Tow Guide Stand -> Dipping Bath -> 1st Draw Stand -> Draw Bath -> 2ND Draw Stand -> Draw Steam Chest -> 3rd Draw Stand -> Tension Control Device -> Tow Stacker -> Crimper Steam Box -> Crimper -> Silicon Oil Sprayer -> Tow Tension Stand -> Cutter -> Fiber Spreader -> Fiber Leveler -> Relaxer -> Chain Plate Conveying system -> Baling Press
Our machines had been exported to India, Russia, Turkey, Korea, USA, Honduras, Thailand, Vietnam, Iran, Philippine and so on.
Sincerely welcome to visit our company. We hope that we have the opportunity to do business together!

---
