Textile Heat Setting Machinery Used for Processing of Tubular Chemical Knitted Fabric

US$30,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FSDX2800
Material
Chemical Fiber Tubular Fabric
Voltage
380V
Load Capacity
>2000kg
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Type
Fsdx2400/Fsdx3800
Width
2*800/1*1600
Speed
3~20m/Min
Dimension
5700X4100X3000/5700X4100X3000
Power
14.15/17.65kw
Dn
Dn50mm/Dn65mm
Oil
120/200
Transport Package
Export Standard
Specification
5700X4100X3000/5700X4900X3000
Trademark
FINESTART
Origin
Jinan, China
Production Capacity
100unit/Year

Product Description


Introduction

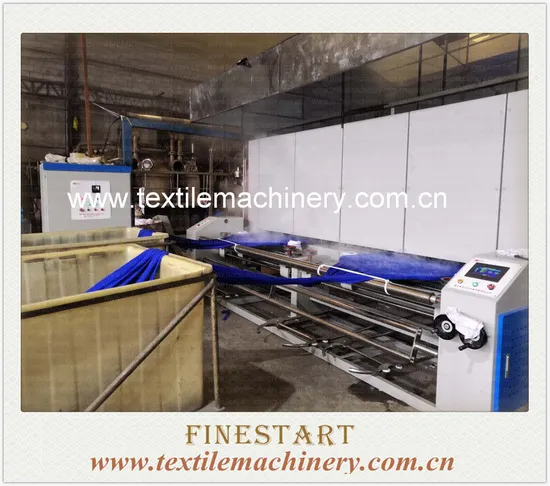

This machine is used for processing of tubular chemical knitted fabric, The machine makes synthetic and mixed fabric to obtain stable siez with stainless steel roller.
The fabric is heated in the heating chamber and get cool process when getting out of machine.
We can offer the following two machines according to the width of the heating chamber, :
FSDX2400,FSDX3800.
FSDX2400 type machine has two work modes: double and single.When processing a narrow fabric. the double mode is adopted; When processing the wider fabric, the single mode is adopted. We can also offer you three-way mode to work.
FSDX3800 machine adopt dual driving control mode and working mode can be designed by your requirement.
You can customize the mercy, volume, cutting knives, and doubles.
We can offer the following five different machine according to the heat source:
electricity, heat conduction oil, natural gas(direct combustion), LPG (direct combustion), steam (2.8 MPa), bio fuels.
We make sure that we can deal with all process better in terms of energy saving and consumption,
We will try to save cost for customer and make you get profit from this.
* The machine also can be designed in the heat source of electricity and natural gas (direct-fired), electricity and LPG (direct combustion) dual energy combination.
* The machine can not be used to process cotton fabric.

Advantage: We possess the upgrade and design ability with our professional technical team, your customized design could be changed into drawing. With advanced technology and best quality, we make sure that you can get satisfied products based on our pleasant cooperation.

Design Drawing
Basic Info
Model FSDX2400 Single Pipe
FSDX3800 Double Pipe
Name Tubular Fabric heat setting machine
Application Textile-finishing
Suitable Fabric Tubular chemical knitted Fabric

Technical Dates
1. Main Matching Fabric Tubular chemical fiber
2. Max. Working Width: 1400mm(single), 1200*2(double)
3. Supporting plate Manually regulate
4. Machine Speed 3-20m/min
5. Chamber Width 2400mm
6. Power Supply 380V·3P·50HZ
7. Main Color Blue/Customize
8. Weight of Machine ≈5T(single),6.5T(double)
9. Drive installed capacity 13kw(single);19.94kw(double)
10. Heat-setting Type hot air circulating
11. Fabric Breadth control Manually regulate
12. Driving type Independently drive(single), double driving(double)
13. Temp. control type Auto temp. Control
14. Compressed air 0.35-0.6MPa
15. Machine Size L=6950mm ,W=3300mm(single)/4900mm(double)
H=3300mm

Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be T/T or in irrevocable L/C at sight.
Delivery time: 30-60 days from the date of receiving down payment. All payment should be received before delivery in China.

Any questions and requirments,contact us now!
