V Type Bending Wire Mesh Fencing Machine with CE Certificate From China

Product Description

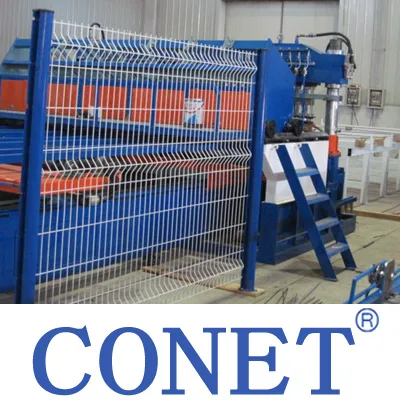

V Type Bending Wire Mesh Fencing Machine with CE Certificate from China

V Type Bending Wire Mesh Fencing Machine welds the line wires (pre-cut) and cross wires (pre-cut) to be mesh in the principle of multi-electrodes resistance welding. After mesh welding, the mesh automatically to be bent into V groove strengthening fence and stacked for package.
The material can be low carbon round or ribbed steel wire or galvanized wire.
The finised wire can be coil mesh or mesh panel.
Specification:

Model	HLV2000	HLV2500	HLV3000
Wire diameter	Φ3-6 [mm]	Φ3-6 [mm]	Φ3-6 [mm]
Mesh width	600-2000 [mm] or 2 pcs 600-1000 [mm]	600-2500 [mm] or 2 pcs 600-1200 [mm]	600-3000 [mm] or 2 pcs 600-1500 [mm]
Max. Mesh length	4000 [mm]	4000 [mm]	4000 [mm]
Line wire spacing	50-200 [mm] stepless adjustable	50-200 [mm] stepless adjustable	50-200 [mm] stepless adjustable
Cross wire spacing	50-200 [mm] stepless adjustable	50-200 [mm] stepless adjustable	50-200 [mm] stepless adjustable
Welding speed	0-80 [strokes/min] (cross wire no°/min)	0-80 [strokes/min] (cross wire no°/min)	0-80 [strokes/min] (cross wire no°/min)
Power supply	380V 50Hz 100-1000KVA	380V 50Hz 100-1300KVA	380V 50Hz 100-1500KVA
Total welding power	1000 [KVA]	1300 [KVA]	1500 [KVA]
Power consumption	2 -30 [kw/h]	2 - 35 [kw/h]	2 - 40 [kw/h]
Compressed air supply	0.6MPa 3m3/min	0.6MPa 4m3/min	0.6MPa 5m3/min
Cooling water supply	0.3MPa 1m3/min	0.3MPa 1m3/min	0.3MPa 1m3/min
Steel Wire ( Material)	Low carbon steel wire	Low carbon steel wire	Low carbon steel wire
Steel wire tensile strength	350-550 [N/mm2]	350-550 [N/mm2]	350-550 [N/mm2]
Steel wire surface condition	Round or Ribbed steel wire or Galvanized wire	Round or Ribbed steel wire or Galvanized wire	Round or Ribbed steel wire or Galvanized wire
Steel wire wastage	No	No	No
Labor need	2	2	2
V groove bending machine max. depth	100 [mm]	100 [mm]	100 [mm]
V groove bending machine max. pressure	80 [tons]	80 [tons]	80 [tons]
Max. stacking height	500 [mm]	500 [mm]	500 [mm]
Total weight	18 [tons]	19 [tons]	20 [tons]

---
