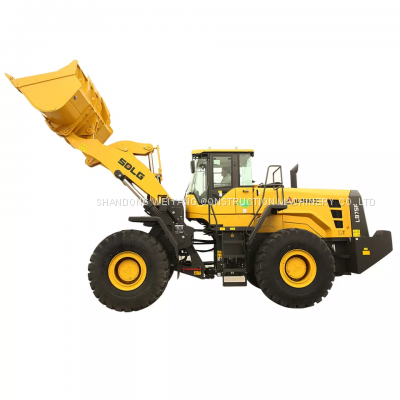

Overall dimension
|
|
|
|
|
L*W*H
| 9525*3320*3620mm
|
|
|
|
|
Wheel base
| 3550mm
|
|
|
|
|
Min. ground clearance
| 506mm
|
|
|
|
|
Max. dumping height
| 3600mm
|
|
|
|
|
Lifting height
| 4695mm
|
|
|
|
|
Dumping distance
| 1300mm
|
|
|
|
|
Dumping angle
| 45
|
|
|
|
|
wheel tread
| 2350mm
|
|
|
|
|
steering angle
| 38
|
|
|
|
|
horizontal crossing radius
| 7550mm
|
|
|
|
|
Min. turning radius
| 6330mm
|
|
|
|
|
Overall parameters
|
Backet capacity
| 4.2m3
|
|
|
|
|
Rated load
| 7000kg
|
|
|
|
|
operating weight
| 24900kg
|
|
|
|
|
Max. tractive force
| 226kN
|
|
|
|
|
Max. breakout force
| 195kN
|
|
|
|
|
Tipping load
| 140kN
|
|
|
|
|
Engine
|
|
|
|
|
Model
| WD10G270E341
|
|
|
|
|
Type
| Inline, watercooled, dry cylinder liner, direct injection
|
|
|
|
|
Rated power
| 199kW
|
|
|
|
|
Rated speed
| 2200r/min
|
|
|
|
|
Engine displacement
| 9726ml
|
|
|
|
|
Max. torque
| 1300N.m
|
|
|
|
|
Emission standard
| GB 20891-2014(China Phase III)
|
|
|
|
|
Min. fuel-consume ratio
| 215g/kw.h
|
|
|
|
|
Transmission system
|
|
|
|
|
Torgue converter
| single-stage three-element
single-turbine hydraulic torque converter
|
|
|
|
|
Transmission type
| Axis-fixed electro-hydraulic transmission
|
|
|
|
|
Gears
| Forward 4 reverse 4
|
|
|
|
|
Hydraulic system of working device
|
|
|
|
|
Type
| Double ball head handle hydraulic pilot control
|
|
|
|
|
total time
| 10.9s
|
|
|
|
|
Brake system
|
|
|
|
|
Service brake type
| Full hydraulic dry brake
|
|
|
|
|
Parking brake type
| Pressure release caliper disc type
|
|
|
|
|
Steering system
|
|
|
|
|
Type
| Load sensing full hydraulic articulated steering
|
|
|
|
|
System pressure
| 21 Mpa
|
|
|
|
|
Fill capacity
|
|
|
|
|
Fuel
| 380L
|
|
|
|
|
Hydraulic oil
| 230L
|
|
|
|
|
Engine
| 20L
|
|
|
|
|
Transmission
| 55L
|
|
|
|
|
Drive axle
| Forward 44L+ reverse 37L
|
|
|
|
|
