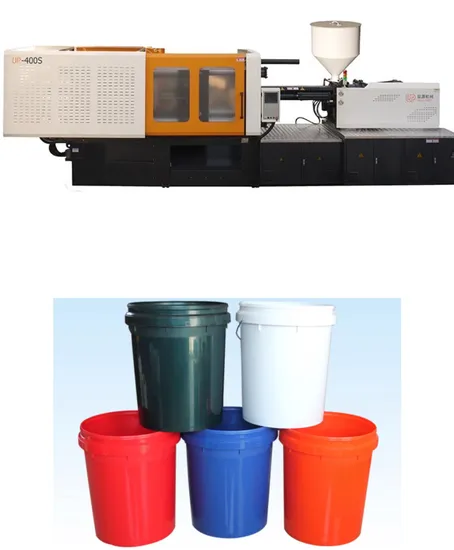

Ningbo 450ton Plastic Bucket Manufacturing Machines

Product Description

China servo injection molding machine.

A. modulus of capacitance: The position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).standard injection molding machine manufacturer

B .nozzle parameters: spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.standard injection machine. C. code mold parameters: code mold hole, slot size.ce standard injection molding machine. D .Ejection mechanism: The position of the ejection point and the diameter of the ejector rod, and if necessary, the ejection force and ejection stroke are also provided.
E. Mold opening stroke and maximum opening distance.plastic injection machine

Technical Parameters	Model UP-450T
Injection Unit	A	B	C
Screw diameter (mm)	75	80	85
Shot Volume (cm3)	1710	1945	2196
Injection weight (g)	1539	1751	1976
injection pressure (Mpa)	173	152	135
Screw speed (rmp)	160
Clamping Unit
Clamping force (KN)	4500
Open stroke (mm)	760
Max Mold height (mm)	800
Min Mold height (mm)	280
Space between tie bars(mm)	760x760
Ejector force (KN)	110
Ejector stroke (mm)	200
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	45(39.5)
Heating power (KW)	29.3
Machine dimension (M)	7.5x2x2.45
Machine weight (T)	16
Oiltank cubage (L)	880

FAQ
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection molding machine?
yes,we have established a highly strict quality control department to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate

---
