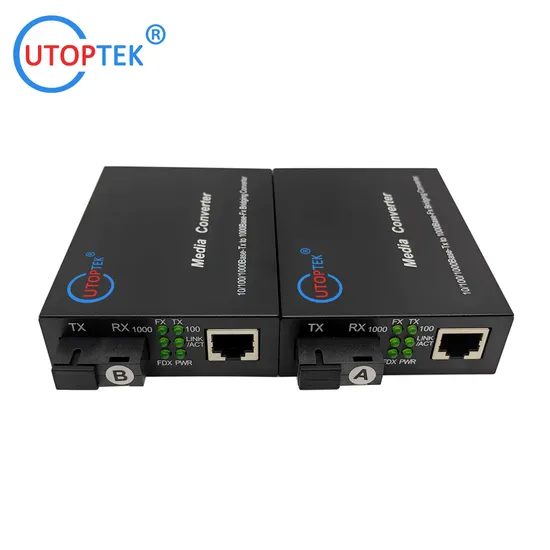

Ut-Mc3101-S20A/B Single Fiber Single Mode 10/100/1000m Gigabit Ethernet Optical Fiber Media Converter

Product Description

10/100/1000M Media Converter Single mode single fiber, 20km/40km/60/80/120km optional, SC/FC/ST/LC optional
Product Description
The Gigabit stand-alone Ethernet Media Converter that provides cost effective, entry-level media conversion between 1x10/100/1000Base-TX ports and 100/1000Base-FX ports. With its fixed configuration, deployments are just plug-and-play, The Fiber optical supports both multimode (SX) or single-mode (LX) fiber port.
Features:
1x 10/100/1000Mbps Auto-Negotiation RJ45 Port Supporting Auto-MDI/MDIX Auto-negotiation of Half-Duplex / Full-Duplex transfer mode from the TX port LEDs Indicate Ethernet, Fiber Link and the Power Status at a Glance Plug-and-play, Support 19inch 2U 14Slots Chassis & Stand-alone Use Extends Fiber distances up to: 0~2km on Multimode, 0~120km on Single Mode Fiber port support ST, SC, FC(1*9), SFP optical connectors are optional Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x Product Parameters

Fixed Port	1*10/100/1000Base--TX RJ45 port (Data)
	1*1000M Optical Fiber Port
Network Protocol	IEEE802.3
	IEEE802.3i 10BASE-T
	IEEE802.3u100BASE-TX
	IEEE802.3ab 1000BASE-TX/FX
Port Specification	10/100/1000BaseT(X) Auto
Transmission Mode	Store and Forward(full wirespeed)
Bandwidth	1024Mbps
Packet Forwarding	7.2Mpps
MAC Address	4K
Buffer	2.5M
MTBF	>100,000 hours
Transmission Distance	10BASE-T : Cat3,4,5 UTP(≤250 meter)
	100BASE-TX : Cat5 or later UTP(100 meter)
	1000BASE-TX : Cat5 or later UTP(100 meter)
	Multi mode double fiber(MAX 850M/2KM)
	Single mode double fiber (default 20KM)
	Single mode single fiber(default 20KM)
	Optional 3-120KM Optical Fiber Module
Watt	≤5W
LED Indicator	PWR:Power LED
	PDX:Working status LED
	TX :Network Port LED
	FX:(Optical fiber LED)
	Link/Act(Optical Fiber Port State LED)
Power	External power (Input: 36-72VDC,output:DC5V)
Operating Temperature/Humidity	0~+70°C; 5%~90% RH Non coagulation
Storage Temperature/Humidity	-20~+75°C; 5%~95% RH Non coagulation
Product size/Packing size(L*W*H)	94mm*70mm*25mm
	230mm*125mm*55mm
N.W/G.W(kg)	0.18kg/0.36kg
Installation	Desktop (optional wall hanger+machine hanger parts)
Lightning Protection level	3KV 8/20us
	IP30
Certificate	CE mark, commercial; CE/LVD EN60950;
	FCC Part 15 Class B; RoHS; CNAS;MA
Warranty	Whole device for 1 year

LED Indicators status:

Indicators	Function	Status	Working Description
PWR	Power LED	ON	Power on
		OFF	Power off
FDX	Work mode	ON	Full-duplex
		OFF	Half-duplex
FX/ACT	FX Link/Act	ON	Fiber link normally
		Blink	Data transmission properly
		OFF	Link unnormal
TP/ACT	TX Link/Act	ON	Connected normally with Network device
		Blink	Data transmission properly
		OFF	Link unnormal
1000M	LAN Speed	ON	LAN:1000Mbps
		OFF	LAN:100Mbps

Detailed Photos

Product application
Packaging & Shipping
Certifications
Customer's Feedbacks

Ordering Informations

10/100Mbps Ethernet Media Converter
Model	Speed	Fiber Type		Wavelength	Distance	Connector
UT-MC2101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:850nm	2km	SC
				TRx:1310nm
UT-MC2101-S20	10/100Base-Tx to 100Base-FX	SM	Dual fiber	TRx:1310nm	20 km	SC
UT-MC2101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1550nm	20 km	SC
UT-MC2101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1490nm	20 km	SC
UT-MC2101-SFP	10/100Base-Tx to 100Base-FX	SM/MM	SF/DF	850/1310/1550	0-120km	SFP
Gigabit Ethernet Media Converter
UT-MC3101-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:850nm	550m	SC
				TRx:1310nm
UT-MC3101-S20	10/100/1000Base-Tx to 1000Base-FX	SM	Dual fiber	TRx:1310nm	20 km	SC
UT-MC3101-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1550nm	20 km	SC
UT-MC3101-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1490nm	20 km	SC
UT-MC3101-SFP	10/100/1000Base-Tx to 1000Base-FX	SM/MM	SF/DF	850/1310/1550	0-120km	SFP
For long distance: 40/60/80/100/120km, pls contact our sales.

FAQ
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.
Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.
Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.
Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.
Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.
Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
