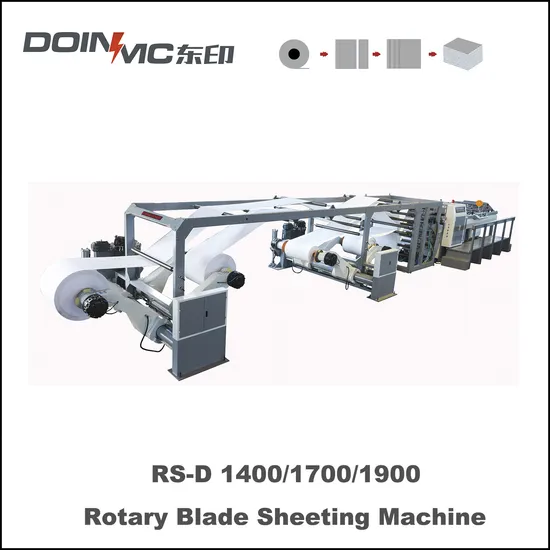

Automatic High Quality Art Paper Rotary Blade Sheeting Machine for Book Store

Product Description

Automatic High Quality Art Paper Rotary Blade Sheeting Machine for Book Store Product Detail:
Company Introduction:
Wenzhou Dongyin Machinery Manufacturing Co., Ltd. Established in 2019, we are growing out from Ruian City Dongfang Machinery Manufacture Co., Ltd.(since 1993) We take the good technical tradition from it, and develop more stronger soft packing material roll sheeting machine series. Absorbing more new advanced technology, we have brand upgrade of our old products both in pre-press and post-press industry.
We will keep our core-value to offer grate service to each customers home and aboard. Offer qualify machine, make client getting rich. Good service, good faith. We DONGYIN people always stand by.
More Machine Details
1 reel loading
Shipping
Machine Introduction:
RS-D series machine control system is composed by motion controller, PLC, touch screen etc. The automatic control system adopt the international first rate servo motor and driver, and all important units adopt famous imports with good quality. It can keep good stabilization along with high cutting speed. Adopt precision bearings and cutting blade. It has high cutting precision, and long service life. Gently touch screen man - machine interface. Good looking and easy to use. Adopt advisable reverse - bent rack to keep paper on the same level. Unwinding adopt hydraulic pressure loading -unloading system, shaftless stand, and automatic pression control system.
It is ahead of the similar processing machine in paper manufacturing and printing in China. It will raise your manufacturing efficiency by times, and increase your benefit as the same.

Model	RS-D 1400	RS-D 1700	RS-D 1900
Max. web width	1400mm	1700mm	1900mm
Max. web dia.	1800mm	1800mm	1800mm
Paper thickness	40-550gsm	40-550gsm	40-550gsm
Cutting method	Lower blade fixed, upper blade rotary cutting
Max. cut speed	200cuts/min	200cuts/min	200cuts/min
Max. meter speed	180m/min	180m/min	180m/min
Cutting length	450-1200mm	450-1200mm	450-1200mm
Cutting precision	±0.5mm	±0.5mm	±0.5mm
Slit format	4 sheets	4 sheets	4 sheets
Max. pile height	1300mm	1300mm	1300mm
Voltage request	380V/50Hz	380V/50Hz	380V/50Hz
Air request	0.8Mpa	0.8Mpa	0.8Mpa
Machine power	32.2kw	37.2kw	47.2kw
Machine weight	14000kgs	16000kgs	18000kgs
Machine size	18000*4000*1900mm	18000*4300*1900mm	18000*4500*1900mm

Standard configuration
1. Prismatic adjustment system for paper 1 SET
2. Paper conveying appliance 1 SET
3. Automatic paper trimming and piling system 1 SET
4. Electrical control system 1 SET
5. Motor driving system 1 SET
6. Accessory 1 SET
7. Face cone shaftless stand 4 SET
8. Paper tension control system 4 SET
9. Operation system: LCD man-machine interface 1 SET
10. Main drive system: AC servo motor 1 SET
11. Round Cutter Slitting System 3 SET.
Customized model, please contact our sales by inquiry here directly.
We will reply by email or phone call as soon as possible.

---
