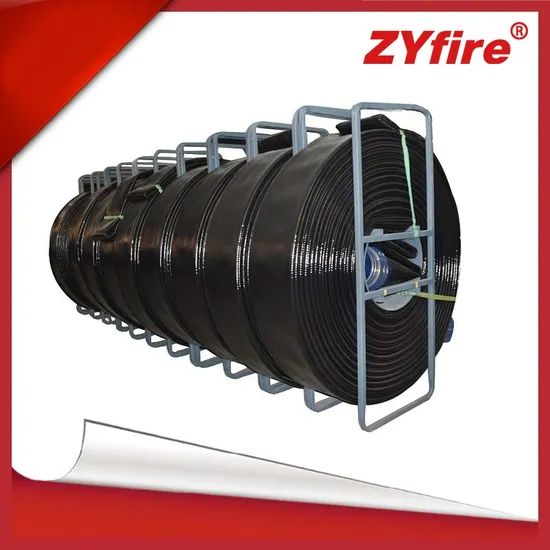

Zyfire High Pressure 6 Inch TPU Layflat Hose for Oil Transportation 40 Bar Working Pressure Blue Layflat Hose

Product Description

Zyfire High Pressure 6 Inch TPU Layflat Hose for Oil Transportation 40 Bar Working Pressure Blue Layflat Hose
Product Description
ZYfire Hose Corporation, founded in 2000, we research and produce Lay flat frac hose, fire hose, rack hose, industrial hose, forestry hose, snow-making hose, irrigation hose, drag hose, potable water hose, No-dig pipe rehabilitation liner, TPR layflat hose, hose couplings, landing valves and other fire fighting equipments.
Fracflo Hose Plus
Cover and Lining: TPU (Extrusion through-the-weave)
Reinforcement Jacket: 100% high tenacity Polyester Filament.
Temperature range:-50ºC to 80ºC (-58ºF to +178ºF)
Available length: 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)
Coupling: LDHC SS316
Nipple and Clamp:
Nipple--->316 Stainless Steel
Clamp---->Ductile Iron
Gasket--->Viton RubberHose Technical Specification:

I.D.	Wall Thickness	Service Pressure	Minimum Burst Pressure	Weight
inch	Approx. inch	psi	psi	Approx. Lbs/ft
4"	0.138	≥250	≥750	0.94
6"	0.150	≥250	≥750	1.41
8"	0.177	≥300	≥900	2.28
10"	0.197	≥300	≥900	3.75
12"	0.228	≥200	≥600	4.3
14"	0.205	≥150	≥450	4.96
16"	0.205	≥150	≥450	5.1

Nipple Chemical Test:

Test Item	Concentration %	Temperature Approx ºC	Endurance
Nitric Acid	10	24	≥1 year
Phosphoric Acid	<5	<100	≥1 year
Calcium Chloride	10	24	≥1 year
Ammonium Hydroxide	30	24	≥1 year
Sodium Carbonate	10	100	≥1 year
Lead Sulfate	30	24	≥1 year
Ammonium Phosphate	any	24	≥1 year
Ammonium Sulfate	any	24	≥1 year
