Telecontrol 12 Two-Step Push Buttons Overhead Crane Industrial Radio Remote Control with Mushroom EMS

Product Description

Product Description
Telecontrol 12 two-step push buttons overhead crane industrial radio remote control with mushroom EMS
1. The standard configuration includes 1 transmiter and 1 receiver (1TX+1RX), 2TX+1RX is available too.
2. There are different working voltages, and adopts the wide range volgae:24-48V or 100-440V, DC12V can be customized.
Industrial radio remote control system F24-12D 1TX+1RX
We supply a range of excellent quality remote controls and receiver kits that are easily integrated into the existing controls, enabling full operation of all motions and speeds including emergency stop features.
F24 series remote control system have many channels in its frequency range. Even in situation where many sets of remote control are used in the same time, working channel can be easily chose without interfering with other signals and hundred-percent safe and reliable. With advanced design and high quality components, the system is durable and easy to operate. It can easily adapt to complicated and harsh industrial environments such as extra-high/low temperature, dusty, strong vibration, greasy, heavy humidity, etc.
An industrial wireless radio remote control system can consist of any number of remote control transmitters and wireless relay receivers working together. Multi channel units provide the flexibility for numerous functions and user selectable network. Thanks for the strong production capacity and a professional team of sophisticated engineers, it gave us the flexibility to customize our systems to meet your needs directly. We carefully listen to your application description and will specify the most cost-effective models from our product line to suit the requirements. We can even add hardware to provide a totally "turn-key" solution.
Features:

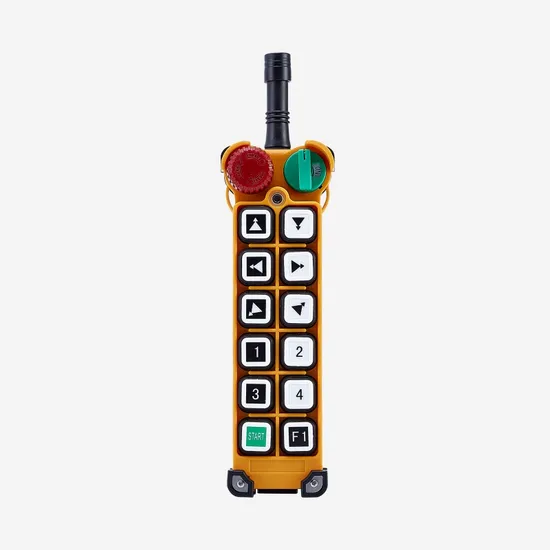

12 two-steps Push buttons ,1stop, 1 start button, and 1 rotary switchProgram the button function by computer interface(software and cable is optional)Glass-fiber PA for extra shock resistance. Wide working voltage input: AC/DC 24-48V or AC/DC 100-440V (depending on clients' need), 12VDC is available Operating distance up to 100 meters, extendable with extra antennaHigh level Enclosure protection class IP 65 Transmitter with working power led indicatorTransmitter with housing for extra shock resistance and shoulder strap cordLow cost for electronic chain, hoist/monorailStandard AA alkaline batteries(not included)With battery voltage warning device, the power supply is cut off during low powerOver 4.3 billions unique ID code availableHamming codeEnhanced watch-dog circuit Product Parameters

Transmitter(TX) parameters:F24-12D-TX
Material	Glass-Fiber PA
Enclosure protection class	IP65
Frequency range	UHF:425-446MHz
Receiver sensitivity	-110dBm
Transmitter power supply	4 AA alkaline batteries(not included)
Safety Code	32 bits(4.3billion)
Temperature range	-40ºC~+85ºC
Control distance	up to 100 meters
Receiver(RX) parameters:F24-12D-RXC
Material	Glass-fiber reinforced Nylon
Enclosure protection class	IP65
Frequency range	UHF:425~446MHz
Transmitter power	≤10dBm
Receiver power supply	AC/DC24-48V/100-440V
Safety Code	32 bits(4.3billion)
Temperature range	-40ºC~+85ºC
Control distance	up 100 meters

Packing list:
Note: Batteries usually are not provided as it is forbidden to ship by air or by sea.Standard configuration:
1X transmitter
1X receiver
1X dust cover
1X receiver antenna
1X operation manual Typical Applications
Application:
Industrial wireless radio remote control widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.
- Mobile Equipment
- Conveyor Control
- Industrial Automation
- Trailer Control
- Door Control
- Cement mixers
- Vacuum trucks
-Hydraulic trailers
- Agricultural equipment
- Lift Gate Control
Industrial control and mobile applications are endless...,No matter the market or application, from Construction to Oil & Gas exploration, Mining to Forestry and Agriculture, Railroad and Locomotive control to Cranes, and a vast number of other applications,UT has been there to support our customer needs. Some of the main features are common to all the set of UT Line products and they ensure the quality, flexibility and product duration.
At UT we focus on safety, efficiency and productivity. Our commitment to our customers is our drive to develop and manufacture a product that is like no other in the industry.
We put our heart and soul into perfecting the design of our radio remote controls to the highest level. And UT is the best choice for industrial remote controls
