Complete a to Z 15000bph Carbonated Soft Drink Production Line

Product Description

Complete Carbonated Drink Production Line
1. Washer filler capper 3in1
2. Capacity: 12000BPH
3. Bottle size: 0.33-2.5L
3-in-1 Automatic Carbonated Drink Filling Line / Complete Carbonated Production Line
Description:
Automatic Bottled Carbonated Drink Production Line are manufactured by advanced technology, and we have completely equipment, so they enjoy fast sales. The filling line combines rinsing bottles, filling bottles and capping bottles together with PLC control. It is mainly used for plastic bottles with carbonated beverages and non-carbonated beverages.
Characteristic:
1. All parts contacting with beverages adopt top grade stainless steels whose surfaces are polished till smooth for easy rinsing. The sealing materials are EPDM rubber.
2. Carbonated beverage productioion line/carbonated drink machine/carbonated filling machine/carbonated beverage machinery/carbonated filling line
3. Adopt PLC as center control, make use of pressure transmitter and electromagnetism pneumatic valve to measure liquid level, keep balance of filling pressure to insure stable liquid level.
4. Adopt new type filling valves which are especially designed for plastic bottles. The returned air and the liquid in filling tank are insulated to insure cleanliness of the filled beverages.
5. Adopt advanced magnet clutches for capping with adjustable torsional moment to insure capping safely and reliably.
3-in-1 Automatic Carbonated Drink Filling Line / Complete Carbonated Production Line
Features:
This automatic carbonated drink filling machine works harmoniously with air-conveyor belt; It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.
This machine is used to fill carbonated drink (carbonated beverage) into pet bottle and with screw caps capping function.
This machine integrated three function:
1. Rinse the empty pet bottle, 2. Filling the rinsed bottles, 3. Capping the filled bottles

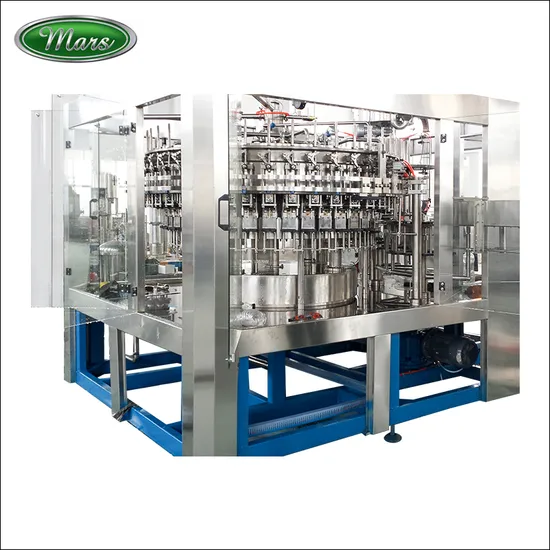

3-in-1 Automatic Carbonated Drink Filling Machine
Technical Parameters:

Model	DCGF323210	DCGF404012	DCGF505015	DCGF606015
Number of washing, filling and capping heads	32-32-10	40-40-12	50-50-15	60-60-15
Production capacity(500ml) (B/H)	9000-10000	12000-13000	17000-18000	20000-21000
Suitable bottle specification(mm)	φ=50-110 H=150~340mm Volume=330-2500ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 7.6kw	Main motor 8.3kw	Main motor 9.6kw	Main motor 15Kw
Overall dimensions (mm)	4100*2000 *2400	4550*2650 *2400	5450*3210 *2400	5500*3510 *2400
Weight (kg)	6500	8500	9800	12000

---
