Waste Plastics Recycling Machine Granules Making Machine

Product Description

Product Description

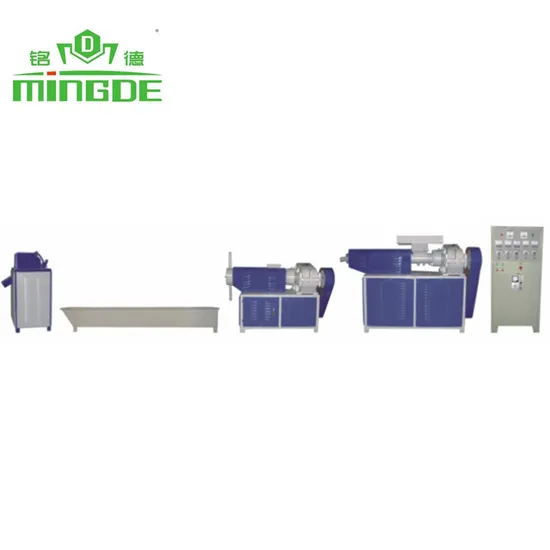

1.automatic constant temperature 2 clectric changing filter nets 3 fie with a loader 4 high putout 5 low noise. Waste Plastics Recycling Machine is used for recycling of the used and waste plastic materials. It equipped with automatic constant temperature, clectric changing filter nets. It also can pelletize the croushing material after fitting with a loader. The cutting machine adopts speed regulating motor. which can cut the matcrial according to the feeding speed of the extruder. With such features as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative. pelletizer.

Model	SJ-A90	SJ-A120
Diameter Of Main Motor Screw	95mm	120mm
Diameter Of Auxiliary Motor Screw	90mm	105mm
Power Of Main Motor	11kw	18.5kw
Power Of Auxiliary Motor	7.5kw	11kw
Power Of Material Cutter	1.1kw	1.5kw
Power Of Heating	13kw	18kw
Output	50kg/h	100kg/h
Weight	1T	1.5T

Model	SJ-B100	SJ-B110	SJ-B120
Diameter Of Main Motor Screw	97mm	107mm	117mm
Diameter Of Auxiliary Motor Screw	105mm	105mm	115mm
Power Of Main Motor	30kw	30kw	37kw
Power Of Auxiliary Motor	11kw	11kw	15kw
Power Of Material Cutter	2.2kw	2.2kw	2.2kw
Power Of Heating	35kw	35kw	40kw
Output	110kg/h	110kg/h	130kg/h
Weight	2.5T	2.5T	2.8T

Other parts Specific:

Granulator 180model

6 cutting blade

Motor of Granulator :1.5kw electromagnetic speed-adjustable motor

Cooling water box 1 stainless steel:2500mm length *350mm width*300mm height

electric cabinet 1 set, Schneider, Yateks temperature-controlled

Main motor and Auxiliary motor start directely.

Motor of Granulator equipped with Speed control table.

The cylinder of Main motor and Auxiliary motor equipped with stainless steel heating ring

Difference compare with SJ-A series :
Harden gear box
secrew material :38crm
Dynamoelectric net picture:

---
