Product Description
Product Description

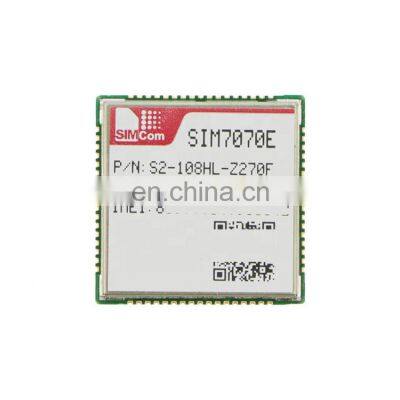

Product DescriptionCAT-M&NB-IoT Module•The SIM7070E is Multi-Band CAT-M, NB-IoT and GPRS module solution in a SMT type.•It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.•It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this SIM7070E module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..Product Advantages•With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7070E can extend battery life to 10 years.•CAT-M, NB-IoT , GPRS triple mode•The package of SIM7070E is compatible with SIM7000/SIM800F/SIM900General FeaturesSupport Bands:•CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/ B18/B19/B20/B25/B26 /B27/B28/ B31/B66/B72/B85•CAT-NB: B1/B2/B3/B4/B5/ B8/B12/B13/B18/B19/B20/B25/ B26/B28 /B31/B66/B85LTE RF Power Class:•B31&B72 Power Class2,•Other Bands Power Class5 (Typ.21dbm)GSM/GPRS:• 850/900/1800/1900MHz• Control Via AT Commands• Supply voltage range: 3.2V-4.2V• Operation temperature: -40°C to +85°C• Dimensions: 24X24X2.3mm• Weight: 2.9±0.2gDataCat-M:- Uplink: up to 1119Kbps Downlink: up to 589KbpsNB-IoT:- Uplink: up to 150Kbps Downlink: up to 136KbpsEDGE:- Uplink up to 236.8Kbps, Downlink up to 236.8KbpsGPRS:- Uplink up to 85.6Kbps, Downlink up to 85.6KbpsOther Features•TCP/UDP•HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT•Ayla Cloud•Firmware update via USB•FOTA•EATInterfaces•UART•SIM card•PCM/I2S•SPI•I2C•GPIO•ADC•USB•Embedded SIM (optional)•Consumption•PSM: 3.2uA•Sleep: 0.8mA @PTW=40.96s eDRX=81.92s Idle: 10mACertifications(plan)•CE/RCM•RoHS/REACHWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
