CNC Hydraulic Sheet Metal Punching Machine

Product Description

Product Description

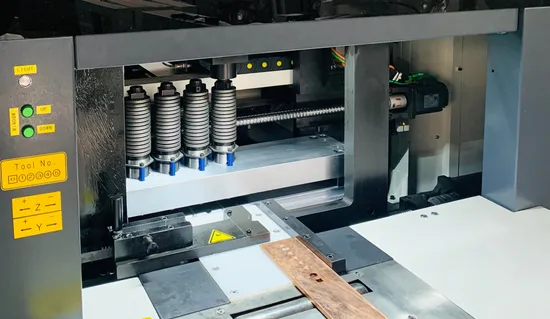

Detailed photo
1. GJ3D software--This is our independent patent in busbar processing, which can realize 3D automatic programming and dynamic simulation.
2. Double clamps--Comparing other single clamp, double clamps can make processing more accurate and stable.
3. Hydraulic system-- Piston pump (rather than gear pump) has large drive power and realize high efficiency.
4. Main components--Imported, so the quality and service life can be guaranteed.
Product feature

Control Section
Serial No.	Name				Instruction
1	Programmable Control				OMRON/Schneider
2	Sensor				Schneider
3	Control Button				OMRON
4	Touch Screen				OMRON
5	Computer				Lenovo
6	AC Contactors				ABB
7	Circuit Breaker				ABB
8	Servo Motors				YASKAWA(Japan) or Schneider
9	Servo Drivers				YASKAWA(Japan) or Schneider
10	Control software and Three-dimensional computer-aided design				Gaoji Busbar Processing System(GJ3D)
Transmission System
Serial No.			Name	Illustration
1			Precision Linear Guide Rail	Taiwan HIWIN
2			Precision Ball Screw Cylinder	Taiwan HIWIN
3			Bearing	Japan NSK
Hydraulic Section
Serial No.		Name				Illustration
1		High Pressure Electromagnetic valve				Italy
2		High Pressure Tube				Germany Rivaflex
3		High Pressure Oil Piston Pump				Rexroth

Technical parameter

Name			Unit	Parameter
Punching Unit		kN	500
Shearing Unit		kN	500
Embossing Unit		kN	500
Max position Speed of X-axis			m/min	48
Max Stroke of X-axis			mm	2000
Max effective of Y-axis			mm	530
Max Stroke of Z-axis			mm	350
Stroke of striking Cylinder			mm	45
max hit speed			HPM	100
number of die station	Punching Die		set	7
	Shearing Die		set	1
Control Axis				3
Hole Pitch Accuracy			mm/m	±0.20
Max hole punch size			mm	Φ32( Thicknessof Copper bar <12mm)
Max Allowable sheet dimension(L*W*H)			mm	6000×200×15
Total power			kw	15.7
main machine dimension:L*W			mm	7500X2980
Total weight			kg	7600

Finished product photo
Packing and shipping

Certifications

Thumb up by Customer
Our service
--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D team and strict & scientific management system.

---
