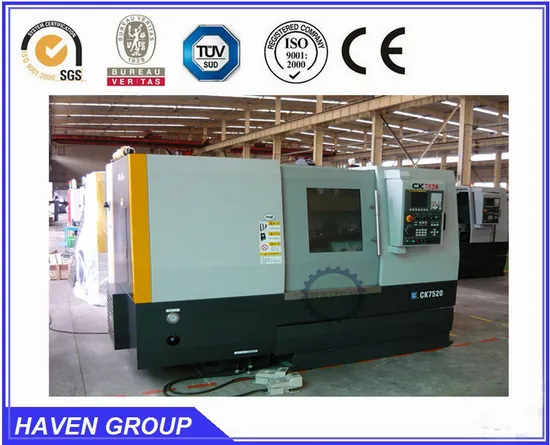

CK7520 CNC Turning Machine

Product Description

CK7520 CNC Turning Machine
Main feature:
CK7520 series CNC lathes, its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design. This series lathe, designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor. Key parts like bearings of main spindle and of feeding screw are all famous foreign products. The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately. The lathe can be equipped with FANUC 0I-TD, FANUC 0I Mate-TD, Siemens 810D, 802D, DASEN 3I and etc on request. Or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.
Main specification:

ITEMS		UNIT	CK7520	CK7520A	CK7520B	CK7520C
Capacity	Max.swing diameter over bed	mm	500	500	500	500
	Max.swing dia . over slide	mm	320	320	320	240
	Max. turning diameter	mm	370	370	370	370
	Max. turning length	mm	500	500	500	750
	Max .bar diameter	mm	51	51	73	51
Spindle	Type of s p indle nose		A2-6	A2-6	A2-8	A2-6
	Sp indle bore diameter	mm	62	62	87	62
	Chuck diameter	mm	210	210	254	210
	Sp indle speeds	r/min	40-4000	75-2500	30-3000	40-4000
			L: 10-1000 H : 40-4000 (with a reducer)
	Sp indle motor power(continuous/30min)	kW	11/15	15	11/15	11/15
Tailstock	Quill diameter	mm	90	90	90	90
	Quill travel	mm	100	100	100	100
	Taper of center(standard/alive spindle)		Morse No.5/4	Morse No.5/4	MorseNo.5/4	Morse No.5/4
Feeds	Travel X/Z	mm	210/550	210/550	210/550	210/780
	Rapid traverse rate X/Z	m/min	12/16	12/16	12/16	24/32 (Linear guideways)
	FANUC s ervo motor torque X/Z	N.m	8/12	11/20	8/12	12/22
Turret	Number of turret station		12/8	12/8	12/8	12/8
	Tool size ( turning/boring )	mm	25×25/40	25×25/40	25×25/40	25×25/40
Others	Slant degree of bed		45	45	45	45
	Power supply	kVA	45	30	45	45
	Dimensions (L×W×H)	mm	2850×1800×1850	2850×1800×1850	2850×1800×1850	3730×1990×1880
	Weight	kg	4500	4500	4500	5000

---
