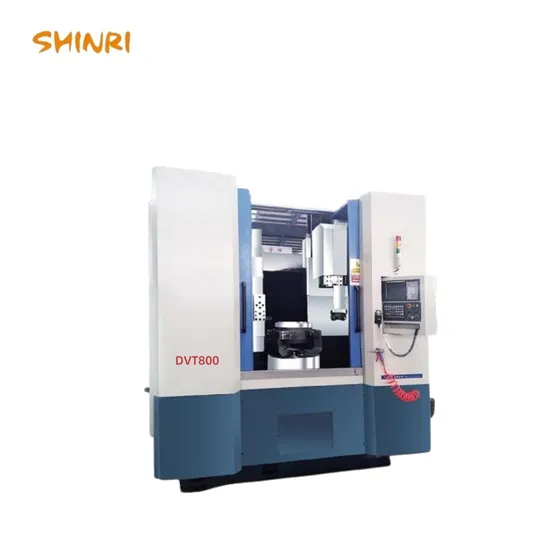

Fixed Beam Type Turning, Milling and Grinding Compound CNC Vertical Machine Tool

Product Description

Product Description
Fixed beam type high-speed CNC vertical turning, milling and grinding machine
1. The X-axis guide rail of the machine adopts an "L"-shaped fixed beam structure design, which greatly enhances the rigidity of the machine during processing. Two saddles are installed on the fixed beam, one on the left and one on the right;
2. The components on the saddle can be configured as needed. Two saddles can be equipped with turrets or tool rows, which is a double turret main machine; one saddle is equipped with a turret and the other saddle is equipped with a BT40 electric spindle, which is a vertical turning and milling combination;
3. One saddle is equipped with a turret and the other saddle is equipped with an electric spindle grinding head, which is a vertical turning and grinding combination.
Product Parameters

Item		Specification	Unit	DVT800
Machining capacity		Max. swing over bed	mm	800
		Max. turning diameter	mm	800
		Max. turning height	mm	650
First spindle (Electric spindle)		Spindle nose		A2-11
		Spindle speed	r/min	50~2000
		Spindle motor power	kW	50
		Spindle rated torque	N m	1194
		Spindle repeat positioning accuracy	″	±2.5
		Spindle positioning accuracy	″	±5
		Hydraulic chuck diameter	Inch	21
Travel		X1 axis	mm	-650~650
		Z1 axis	mm	650
Turret		Turret type		Horizontal servo 12 stations
		Tool size	mm	32/Φ50
Second spindle	Drill spindle	Spindle taper hole		BT40-150
		Spindle speed	r/min	80-10000
		Spindle power	kW	7.5/11
		Spindle torque	N m	35
	Grinding spindle (electric spindle)	Spindle power	kW	28
		Speed speed	r/min	6000
		Lubrication form		Oil mist
Travel		X2 axis	mm	-50~500
		Z2 axis	mm	650
Tool magazine		Type		Disc type 12T
		Tool location		12+1
Overall dimension		L×W×H	mm	3500×2100×3150
Weight			kg	15000

Company Profile
SHINRI CNC Machinery Group is consisted of Jiangsu Shinri Heavy lndustry Science &Technology Co., Ltd, Jiangsu Shinri Gear Systems Co., Ltd Ningxia Shinri Changcheng Machinery Co., Ltd, Ningxia Shinri Changcheng Casting Company Co., Ltd. Lt is subordinate to the New United Group. Shinri products covered three time-honored brands, respectively Shinri, Changcheng and Duoleng and 12 different products series. So far Shinri becomes one of the biggest machine tool manufacturers covering nearly alltypes of machines in China.
By embracing new, high and outstanding technology, Shinri opens his hands to escalate his customers from their traditional applications and gives optimized solutions. The two R&D centers and manufactory bases, in Changzhou and Yinchuan, have totalarea of premises of 700 thousands m and 300 thousands m modernized plants. We introduced a good number of high precision mother machines from world first class makers and the yearly machine production reaches to 3500 pieces or more. In Yinchuan city, by invested 600 mllion RMB, the first phase of construction of foundry plant has established with yearly capacity 40 thousand tons With strong financial, intelligent and technical supports, the company is gigantic in R&D and manufactory.
Its products list covers VMC, HMC, CNC lathe, gantry boring milling/machining center/5 faces/5-axis synchronous, floor type boring milling/machining center, end facing & centering machine, drilling machine, FMC, FMS, Railway gear box, Wind power gear box and industrial gear box etc. The products are broadly applicable to aerospace, automobile, shipbuilding, electronic appliance, new energies sources, railway traffic, engineering mechanic, petro chemistry, die tooling and vocational education...etc.
As a national enterprise endowed with the mission of rejuvenating Chinese traditional industry, Shinri will follow the concept ofputing people first, making innovations & building a future of excellence. Work under the guiding principle of providing the highquality products & best service for customers in order to become the most competifive CNC machine tool manufacturer & bestsolution provider at home & abroad.

---
