Vpl-A1003f-Pj12AA a/B Vpl Low Inertia Motor 240V Automation Control AC Servo Motor

Product Description

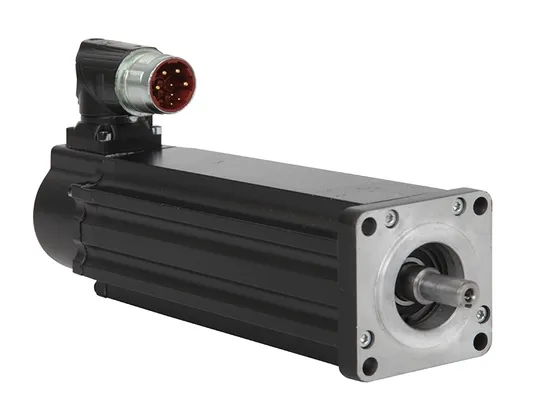

Kinetix VP Servo MotorsVPL-A1003F-PJ12AA, Introducing the VPL Low Inertia Motors, an engineering marvel featuring a 240V AC system perfectly designed for precision and efficiency. This model boasts a 100mm Bolt Circle Frame Size, ensuring robust performance and stability. Equipped with three sophisticated Magnet Stacks and an F Winding configuration, it delivers a remarkable 4500 RPM Rated Speed. The motor is adorned with an 18-bit Single-turn and a 12-bit Multi-turn Digital High Resolution Encoder for unparalleled accuracy and control. Its Keyed Shaft offers reliable operation, complemented by a Single SpeedTec Din Connector for seamless integration. Enjoy the simplicity of a model with No Holding Brake, crafted to meet standard expectations with excellence.

Bulletin Number	VPL Low Inertia Motors
Voltage Class	240V AC
Frame Size	100mm Bolt Circle Frame Size
Stack Length	3 (Three) Magnet Stacks
Rated Speed	F Winding, 4500 RPM Rated Speed
Feedback	18 bit Single-turn and 12 bit Multi-turn Digital High Resolution Encoder
Shaft Extension	Keyed Shaft
Connectors	Single SpeedTec Din Connector
Brake Option	No Holding Brake
Mounting	IEC Metric Mounting Flange
Factory Options	Standard
Torque Rating	Torque Rating

---
