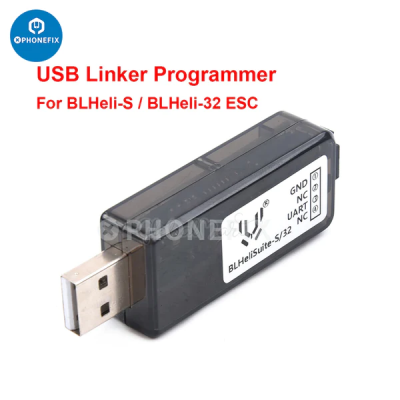

ESC USB Linker Programmer BLHeli BL-S BL-32 Parameter Setter

Product Details

Product Description

Product Description
USB Connector Programmer Brushless ESC BLHeli Parameter Setter BLHeliSuite Open Source Speed Control Programming for RC FPV Drone.
Features:
BL-S/BL-32 can use BLHeli-16 and BLHeli-32 software. (Connect the ESC signal line end to the computer USB interface and connect with the assistant software.)
BLHeli-16 software Supports ESC of SIL and ATMEL chips ;BLHeli-32 software Supports ESC of STM chips.
Convenient to set up various functions of open source ESC on the computer. Used for BLHeli open source ESC. As long as the ESC is marked with BLHeli (BLHeli-S, BLHeli-32), it can be used.
The ESC can be set to one-way or two-way, and the motor starts current size. One-way ESC commutation.
BLHeli open source ESC special.
ESC firmware / configuration can make the difference between super stable flight and erratic flight. This handy USB programming tool allows you to quickly and easily configure the parameters of your ESC and update its firmware. Simply connect the ESC's signal wire and ground into the adapter and then to the USB port of your PC (the ESCs battery input needs to be connected to a power supply as well). With it, there is no need to cut open the heat shrink or use any additional interface components.
Common reasons why you may need to configure your ESC:
Reverse the rotation of the motors.
Enable the brake on stop.
Setup up beacon sounder.
Upgrade the BLHeli firmware on your ESC.
Change other BLHeli ESC parameters.
Note:
1. After receiving the product, you can contact with customer service to ask the driven software.
2. The option BL-S/BL-32 with shell can adjust both BLHeli-S and BLHeli-32 ESC.

---
