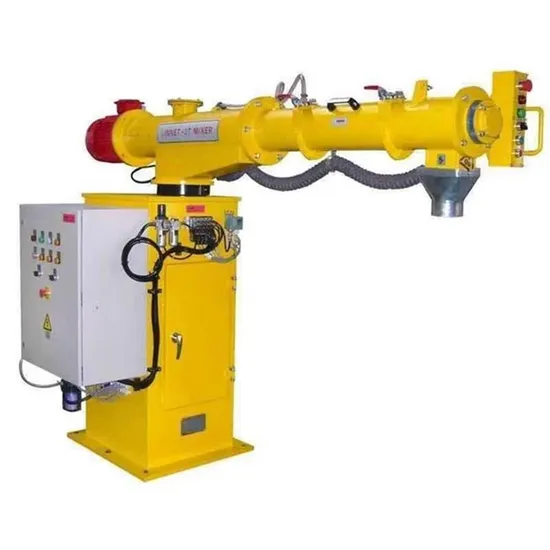

S24 Series High Quality Single Arm Continuous Sand Mixer Master in Resin and Water Glass Sand Blending

Product Description

Features:1. The molding sand in the machine is completely drained after the machine is stopped to avoid cleaning difficulties caused by the molding sand hardening.2. Electricity adopts imported plc control, stable and reliable work, and automatic production.3. The spindle speed is set to medium speed and the blades are distributed uniquely, making the sand mixing more uniform.4. The sand-mixing blade is made of tungsten steel cemented carbide with standard steel casting, which is super wear-resistant.5. The stirring cage adopts a horizontal split structure, which is convenient for cleaning or adjusting the sand mixing blades, and is easy to operate and maintain.6. Special adhesive feeding system and molding sand discharge port design, with precise control, the sand mixer can realize basically no head and tail sand loss during starting and stopping.7. Resin is conveyed by gear pump (with stepless speed governor), and curing agent conveying pump is mechanical diaphragm pump imported from Italy.8, industry terms: resin sand mixer, resin sand mixer, single-arm sand mixer, resin sand equipment

Single-arm resin sand mixer Single-arm resin sand mixer, resin sand mixer is suitable for the mixing of various kinds of self-hardening sand such as resin sand, water glass sand, etc. in the production of cast steel, cast iron, non-ferrous alloys, etc. The requirements of manual modeling can also be configured for use in HR core shooter, mechanized modeling and core production. Resin sand mixing foundry equipment, a continuous operation of the core sand sand mixing machine, the machine is made of continuous mixing liquid curing agent and liquid resin or self-hardening sand core making use of resin sand mixer. Resin sand sand mixer can be divided into: single arm resin sand mixer and double arms resin sand mixer .
the single arm sand mixer agglomerant system adopt electric variable diaphragm pump,light weight,compact size,the flow is stable and reliable. sand mixed system of uniform,effectively ensure the shape(core systm) quality. sand mix short time,without a head,tail sand,down the back of clean material.wide-open cage-type wal of sand up for leaf clean-up or adjustment,to facilitate the operation and maintenance.
Type Single sleeve Capacity ~ 20 t/h
Alpha set process Height of opening for loading sand ~ 2. 0 50 mm
Sand discharge hole height ~1.000 mm
Sleeve Type Auger Auger drive power ~ 15 kW
Resin pump power 0.75KW
Slow hardener pump power 0.55 kW
Fast hardener pump
power 0.55 kW
Manufacturer China

---
