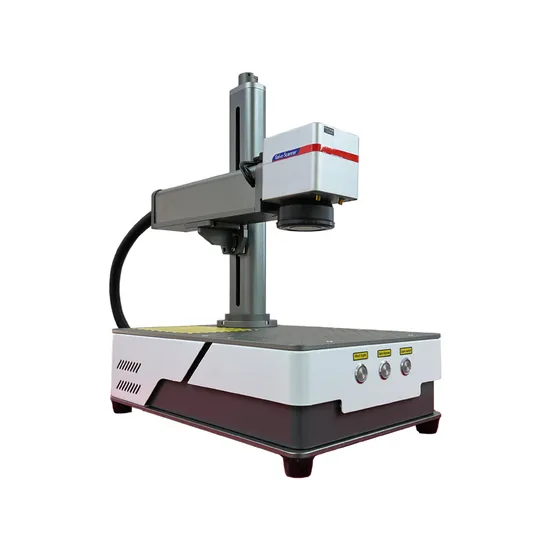

20W 30W Portable Metal Fiber Laser Marking Machine Price

US$1,000.00-1,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
FM1-2
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Keywords
Fiber Laser Marking Machine
Function
Making Metal&Non Metal
Laser Power
20W/30W (QS)
Motherboard
Bjjcz
Software Support
Support Windows XP/7/8/10
Support Material
Metal&Non Metal
Laser Source Brand
Raycus
Max Position Speed
7000mm/S
Continuous Working Time
Continuous Working Time
Pulse Duration
90-120ns
Frequency
30kHz~80kHz
Min. Linear Width
0.01mm
The Whole Power Consumption
500~600W
Marking Depth
0~1.0mm
Spot Size
43um
Transport Package
Wooden Box
Specification
30kg
Trademark
LAMBD
Origin
China
HS Code
8456110090
Production Capacity
3000sets/Year

Packaging & Delivery

Package Size
33.00cm * 42.00cm * 64.00cm
Package Gross Weight
35.000kg

Product Description

Specification
Laser source brand RAYCUS Laser source power 20W/30W
Max single pulse energy 0.67mj 20W marking area 110*110mm/150*150mm/175*175mm(marking light)
Pulse duration 90-120ns 30W marking area 110*110mm/150*150mm/175*175mm
/200*200mm/220*220mm(marking light)
Laser wavelength 1064nm Marking depth 0~1.0mm
Frequency 30KHz~80KHz Spot size 43um
Laser power density 80ZMW/mm2 Min. linear width 0~1.0mm
System environment WINDOWS XP/7/8/10 Repeat accuracy 0.005mm
Supported Image format BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFFAI,DXF,JPC,PLT,SVG,BOT,DST Max position speed 7000mm/s
